2024 Mondraker Raze R Alloy

Product image 1
Product image 2

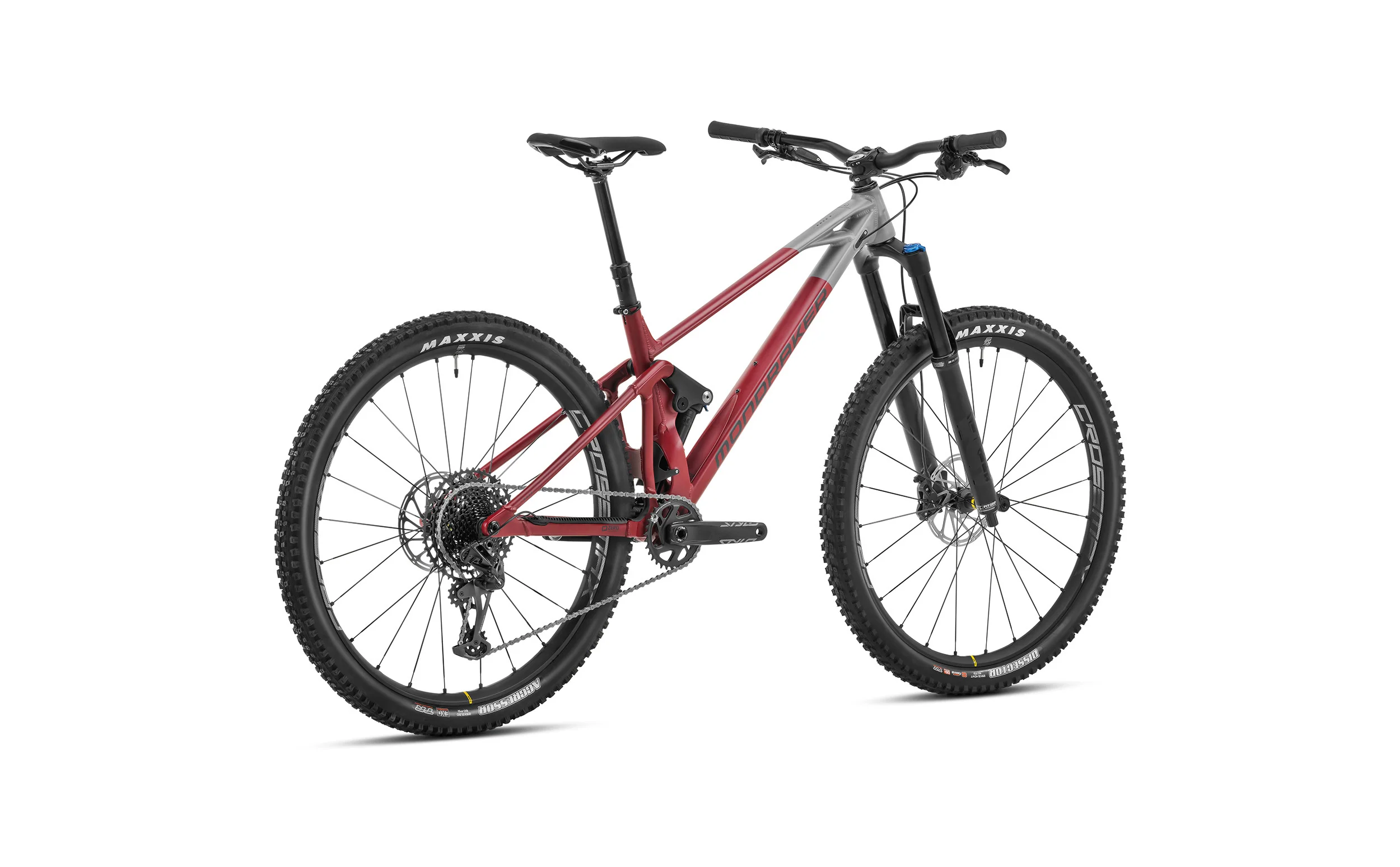

Product image 3

2024 Mondraker Raze R Alloy

RAZE

AT MONDRAKER WE’RE CLEAR ABOUT OUR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

For most people they need to be able to go both up as well as down. RAZE is our Trail model for riders who want it all, a sure bet yet spectacularly light weight trail rocket with 150mm of front wheel travel and 130mm at the rear. The RAZE is no ordinary trail bike because we believe that the definition of a trail bike shouldn’t be about its suspension travel but its functionality. What’s more, for 2023 the RAZE range is complemented by two aluminium models, both for riders who simply prefer alloy frames and also for those who prefer a more economical option. The RAZE is still THE TRAIL MASTER. Not surprisingly the RAZE CARBON RR model was given the best trail bike of 2022 award by the prestigious UK bike magazine MBR, which just about says it all.

NEW FOR THIS SEASON

New for this season, the RAZE R has the same features as the CARBON version, but with a frame made of aluminium alloy. It’s so adept at climbing that that when it’s time to head downhill you’ll be stunned by its levels of shock absorption and manageability. Fun is quite simply one of the RAZE R’s greatest strengths. With 150mm of travel at the front and 130mm at the back, the RAZE R features a Fox 36 Float fork mated with a Fox Float shock; SRAM GX/SRAM NX Eagle 12-speed drivetrain; Mavic Crossmax XL wheels; SRAM G2 brakes; and ONOFF components.

COMPONENTS

TECHNICAL SPECS

  • frame

    Frame

    Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05


    sizes

    Sizes

    S: 380mm / M: 420mm / L: 470mm / XL: 510mm

  • rear shock

    Rear shock

    Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings


    shock settings

    Shock settings

    Light compression, light rebound, air volume spacer 0.6

  • fork

    Fork

    Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload


    headset

    Headset

    ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45Âșx45Âș, bottom 51.9x40x8x45Âșx45Âș

  • stem

    Stem

    ONOFF Sulfur FG 30mm 0Âș, 6061 forged alloy, 31.8mm barbore


    handlebar

    Handlebar

    ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9Âș backsweep, 5Âș upsweep, 31.8mm barbore

  • grips

    Grips

    ONOFF Twin, 1lock-on, 135mm


    seatpost

    Seatpost

    ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

  • saddle

    Saddle

    MDK series PU 2023


    front brake

    Front brake

    Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads


    brake lever

    Brake lever

    Sram G2 R, tool-free reach adjust

  • rims

    Rims

    Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes


    spokes

    Spokes

    24 straight-pull double butted spokes

  • front hub

    Front hub

    Infinity hub, Boost 15x110mm, IS 6 bolts


    rear hub

    Rear hub

    Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

  • front tire

    Front tire

    Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead


    rear tire

    Rear tire

    Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

  • crankset

    Crankset

    Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm


    rings

    Rings

    32T, CNC-machined alloy, X-SYNC 2

  • bottom bracket

    Bottom bracket

    Sram DUB BSA, sealed bearings, 73mm


    chain

    Chain

    Sram NX Eagle, 12s, Powerlock

  • rear derrailleur

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1


    shift levers

    Shift levers

    Sram Trigger NX Eagle, 12s, X-Actuation 1:1

  • casette

    Casette

    Sram XG-1230, 11-50T, 12s


    derailleur hanger

    Derailleur hanger

    Sram UDH

  • weight

    Weight

    14,9 kg

    Geometry

    FRAME SIZE
    		S M L
    A Seattube length 375 mm 4515 mm 445 mm 490 mm
    B Toptube length 594 mm 614 mm 638 mm 658 mm
    C Bottom bracket drop -29 mm -29 mm -29 mm -29 mm
    D Bottom bracket height 340 mm 340 mm 340 mm 340 mm
    E Chainstay length 435 mm 435 mm 435 mm 435 mm
    F Seat tube angle 72Âș 72Âș 72Âș 72Âș
    G Effective seattube angle 77Âș 77Âș 77Âș 77Âș
    H Headtube angle 65.5Âș 65.5Âș 65.5Âș 65.5Âș
    I Fork Offset 44 mm 44 mm 44 mm 44 mm
    J Wheelbase 1197 mm 1216 mm 1246 mm 1266 mm
    K Headtube length 100 mm 100 mm 120 mm 120 mm
    L Reach 450 mm 470 mm 490 mm 510 mm
    M Stack 623 mm 623 mm 641 mm 641 mm
