2026 Haibike AllMtn CF11 TRN/IQ Pinion EMTB
Call us today to pre-order your bike, deliveries beginning in June!
Description
Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!

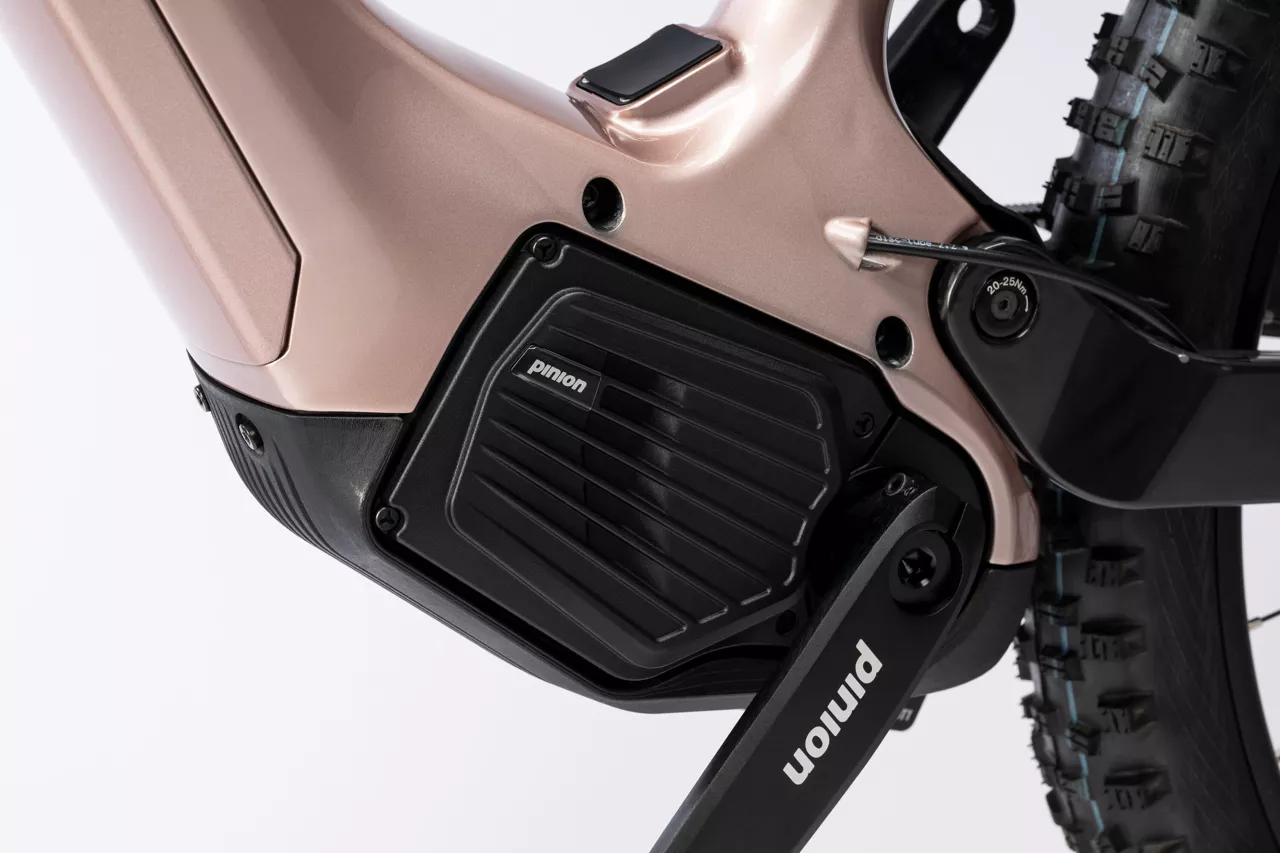

Pinion MGU E1.12 Motor and 12-Speed Transmission in One
At the heart of the new AllMtn CF TRN/IQ is the Pinion MGU E1.12 – a compact unit combining a powerful electric motor with a precise 12-speed gearbox.
Thanks to electronic shifting technology, you shift seamlessly and reliably—even under load.
Derailleur and cassette? A thing of the past—meaning no broken parts, no constant readjustments, just pure ride focus.
Specification
Battery - Pinion InTube 800Wh
Battery brand - Pinion
Battery capacity - 800 Wh
Charger - Pinion FIT Standard Charger 48V
Display - Pinion FIT Master Node Display + Remote Pure
E-bike system - Pinion
Maximum support speed - 25 km/h
Motor - Pinion E1.12 MGU
Motor torque (nm) - 85 NmDrive

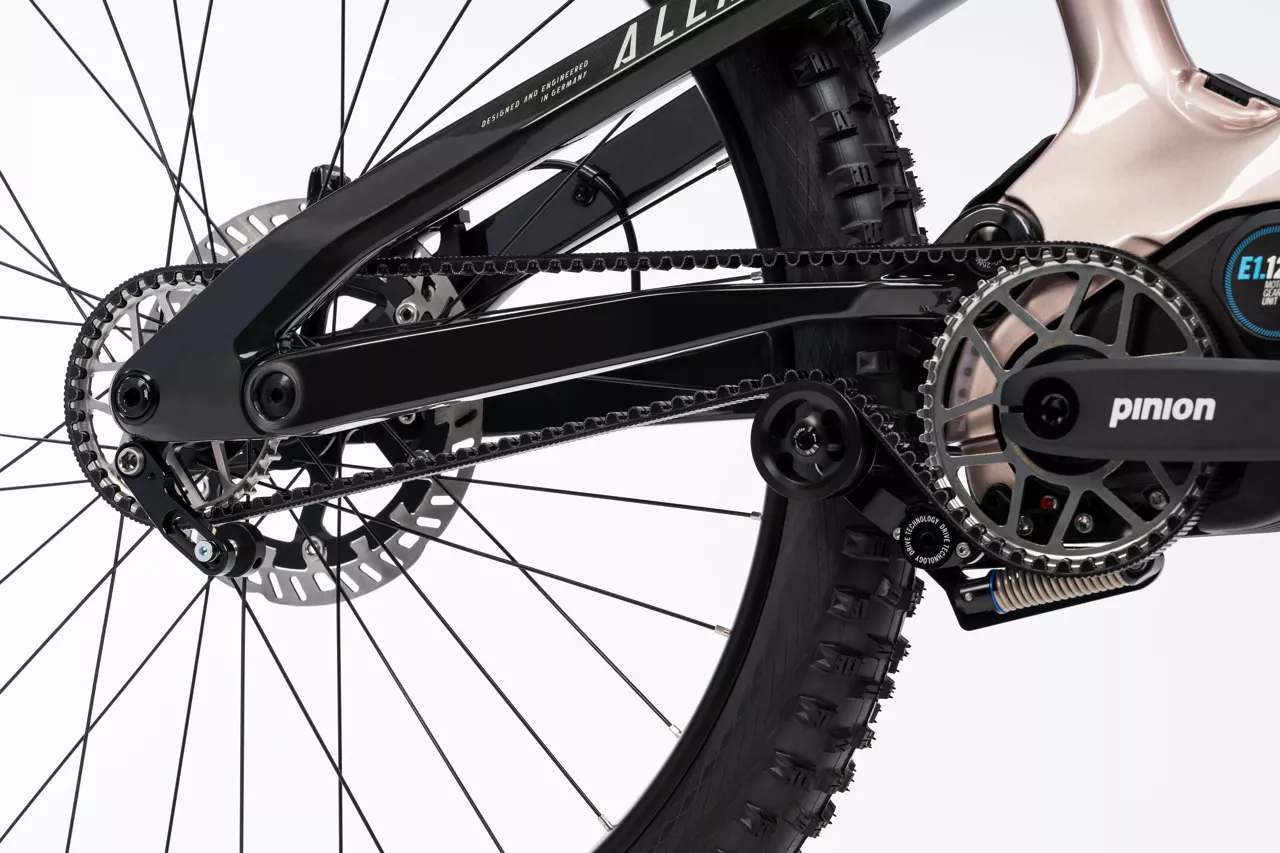

Cassette - Gates Carbon Drive CDX Sprocket 9-Spline
Chain - Gates Belt Carbon Drive Belt CDX, 120T
Crankset - Pinion Forge Crankset 165 mm + GATES CDX front sprocket 165
Frame - High Carbon Uni
Frame material - Carbon
Gear - Pinion Gearbox
Max permissible weight (Rider, Cargo and Bike) - 135 kg
Number of gears - 12
Shifter Right - Pinion Triggershift Smart Shift TE1Suspension

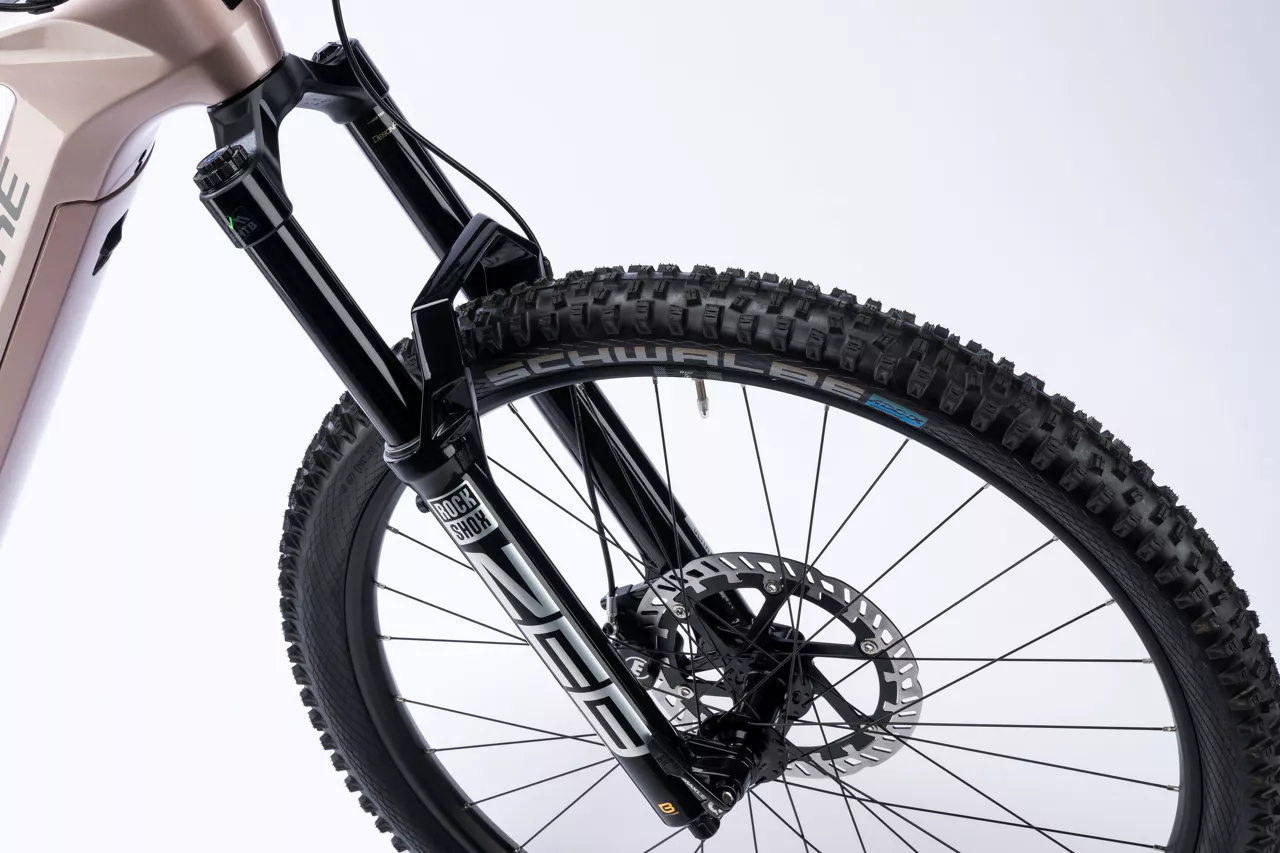

Front Fork - Rockshox ZEB Ultimate Charger 3.1 RC2 160 mm

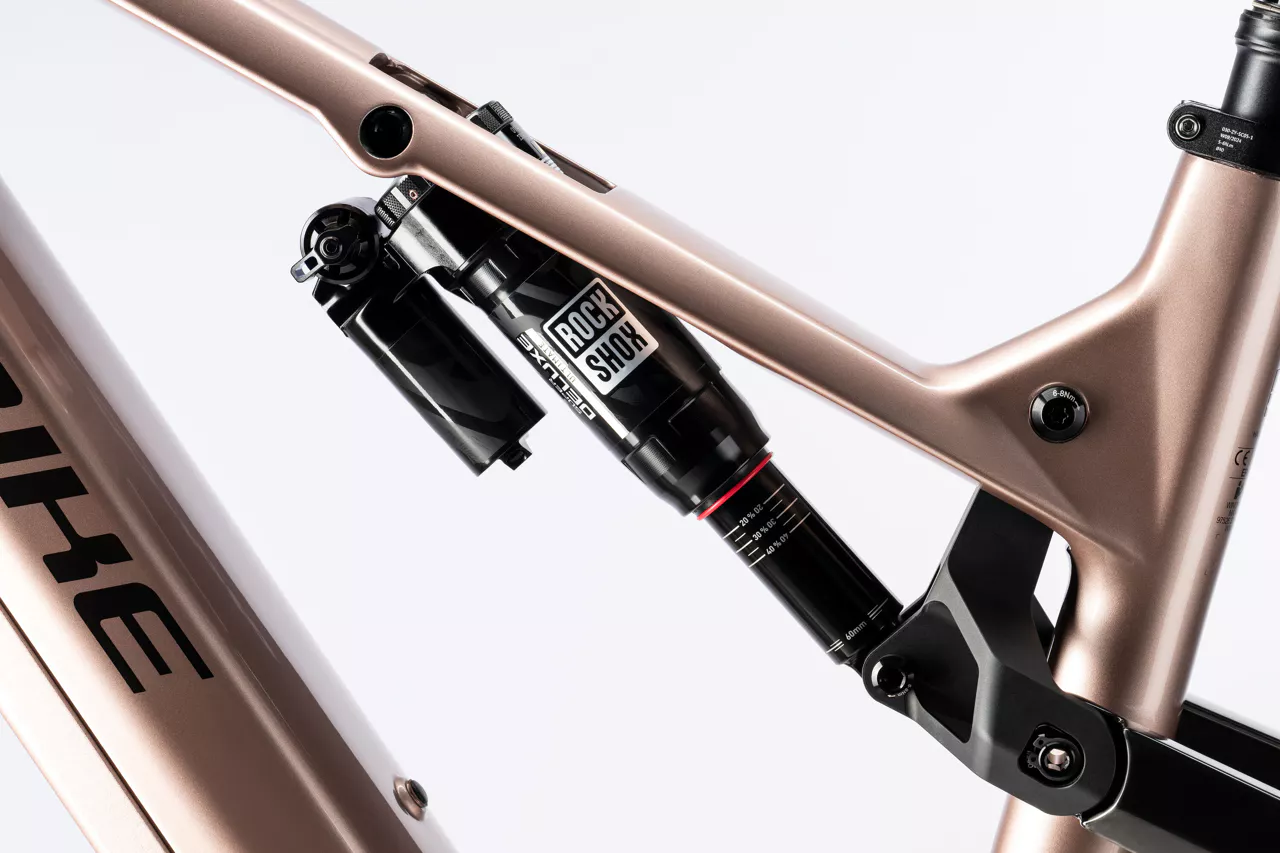

Shock - Rockshox Super Deluxe Ultimate RC2T 230x60mm
Travel - 160 mmComponents
Brake Rear - Magura Hydraulic Disc brake MT5, 4 pistons 203 mm
Front brake - Magura Hydraulic Disc brake MT5, 4 pistons 203 mm
Grip kind - MTB Grip Set VLG-1751D2
Handgrip brand - XLC
Handlebar - Haibike TheBar++ Dia. 31.8 mm
Pedal - XLC VPE-527 MTB Alloy Pedal w. Reflector
Saddle - Selle Royal Vivo 1216HRN
Seatpost - Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 150 mmWheelset
Front wheel size - 29
Rear wheel size - 27.5
Tyre - Continental Kryptotal-Fr, Enduro Soft
Geometry
