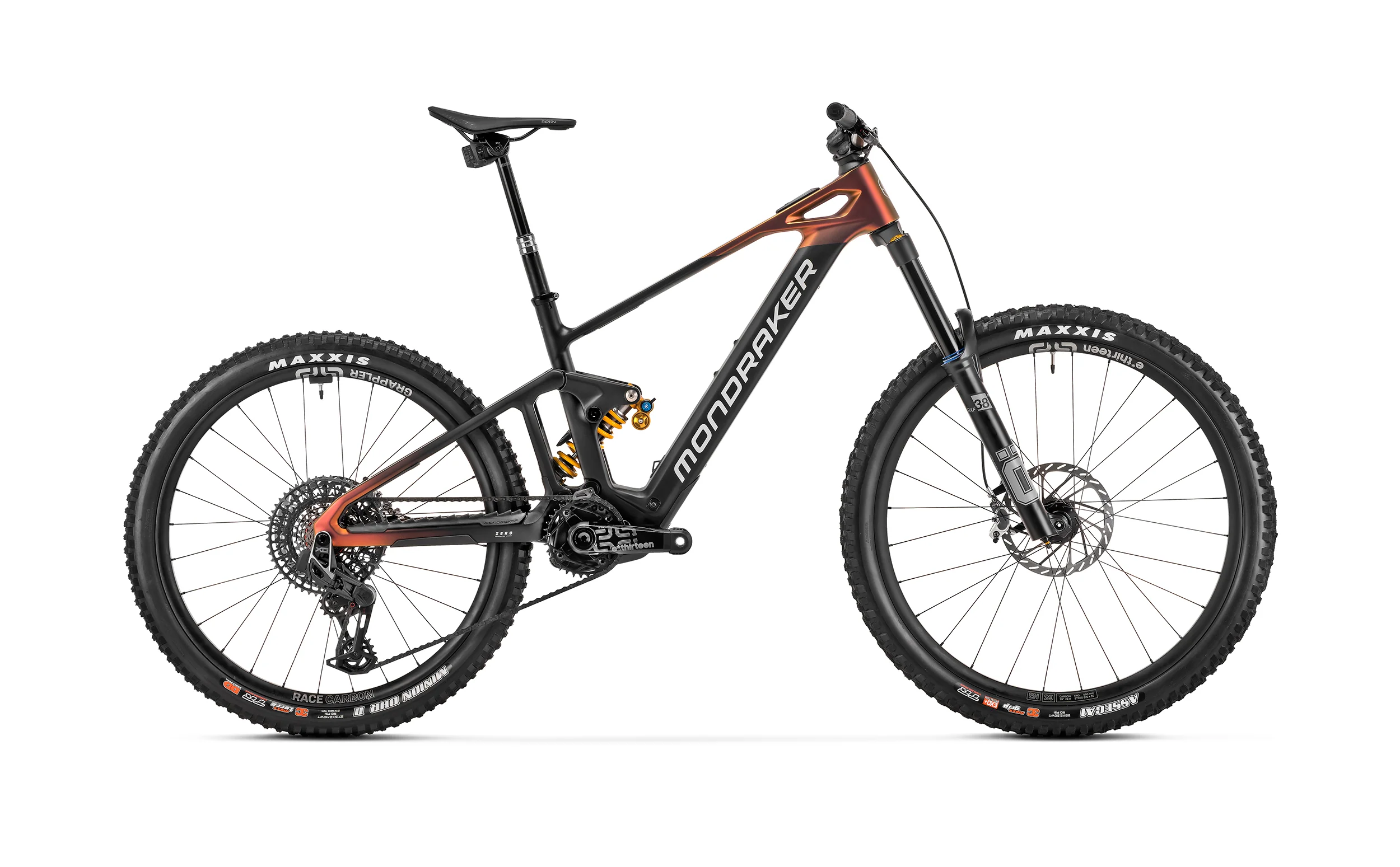

DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes. Weighing in at under 20Kg, including an integrated 400Wh battery, it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.
Frame
Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm

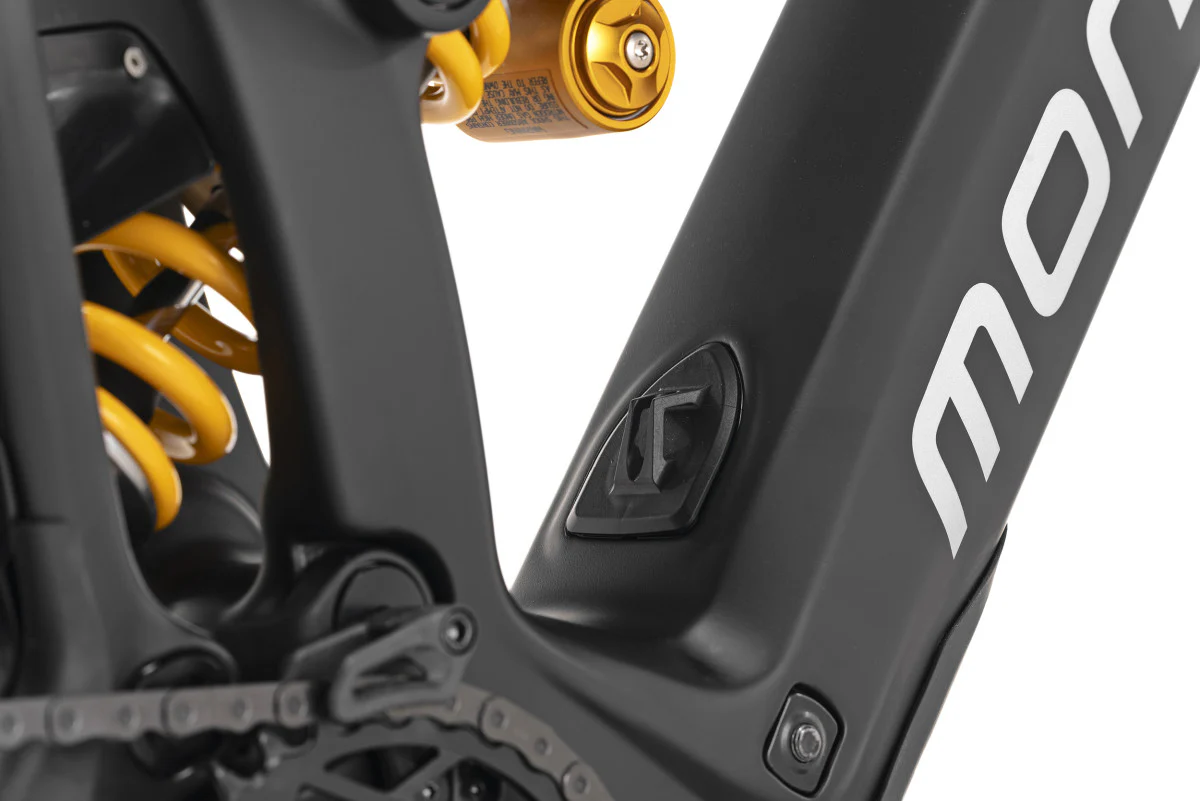

Rear shock
Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

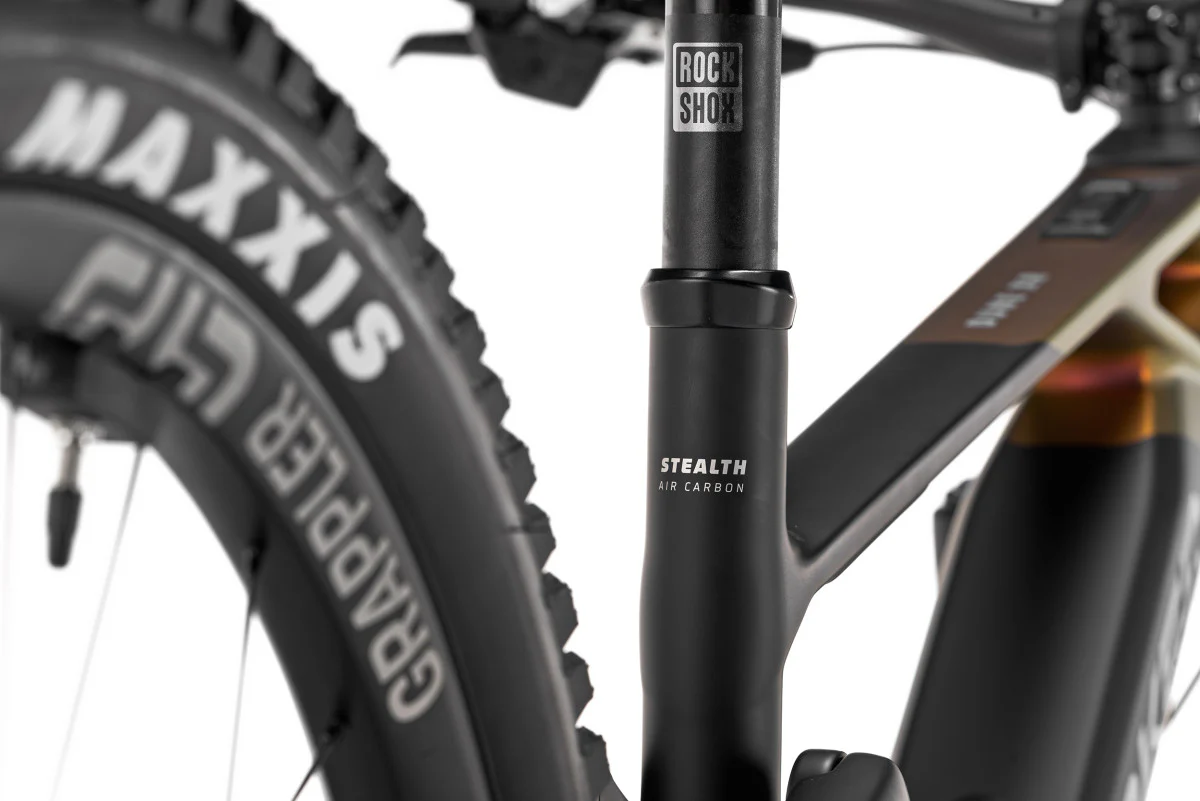

Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle
Fizik Terra Aidon Slim X5
Front brake
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

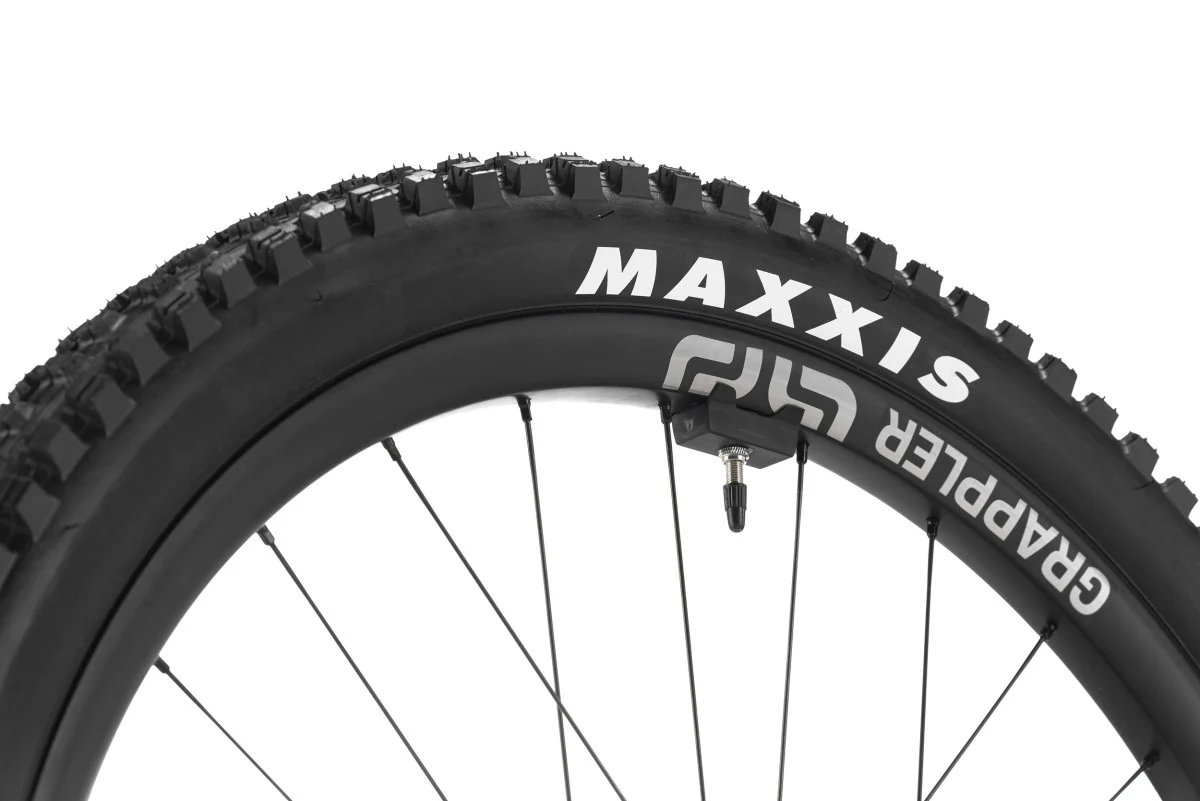

Rims
e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''''5 rear
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
e*Thirteen TRS Race carbon ebike, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram X0 Eagle T-Type, 12s, Powerlock

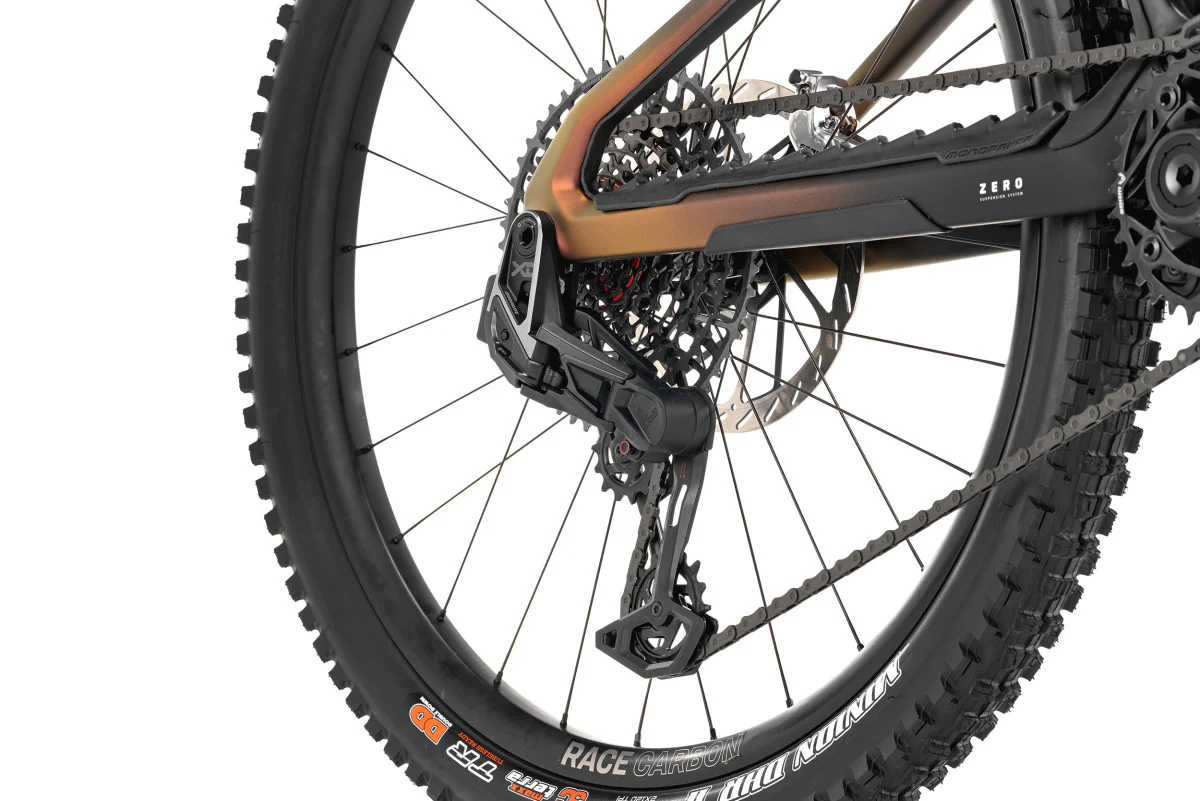

Rear derrailleur
Sram X0 Eagle AXS T-Type,12s

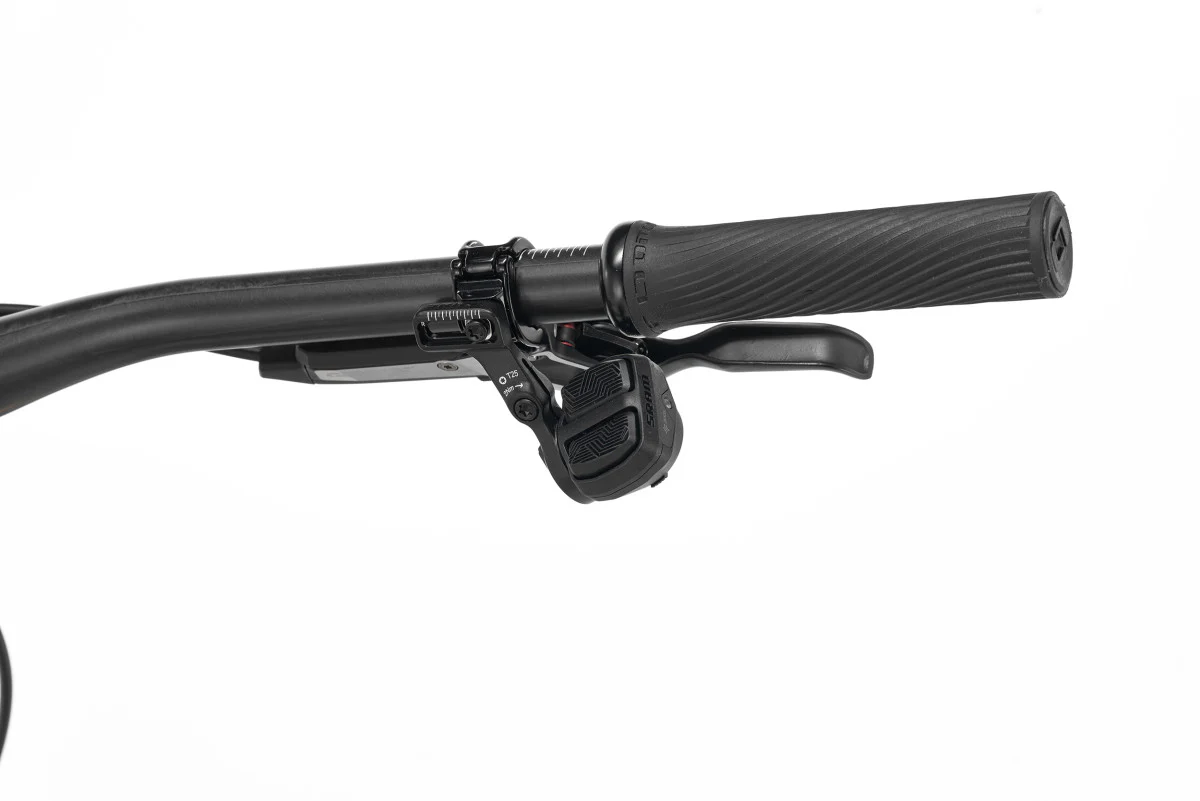

Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1295, 10-52T, T-Type, 12s
Weight
19,5 kg
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery
Bosch Compact Powertube 400Wh
Geometry
|
Frame size
|
S | M | L | ||
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 600mm | 620mm | 645mm | 665mm |
| C | Bottom bracket drop | -18/-3mm | -18/-3mm | -18/-3mm | -18/-3mm |
| D | Bottom bracket height | 355mm | 355mm | 355mm | 355mm |
| E | Chainstay length | 445mm | 445 mm | 445mm | 445mm |
| F | Seat tube angle | 73,5º | 73,5º | 73,5º | 73,5º |
| G | Effective seattube angle | 77,0º | 77,0º | 77,0º | 77,0º |
| H | Headtube angle | 63,5º | 63,5º | 63,5º | 63,5º |
| I | Fork Offset | 44 mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1237mm | 1265mm | 1290mm | 1314mm |
| K | Headtube length | 100mm | 110mm | 130mm | 140mm |
| L | Reach | 440mm | 460mm | 480mm | 500mm |
| M | Stack | 625mm | 634mm | 652mm | 662mm |
Original: $12,524.27
-70%$12,524.27
$3,757.28Product Information
Shipping & Returns
DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes. Weighing in at under 20Kg, including an integrated 400Wh battery, it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.
Frame

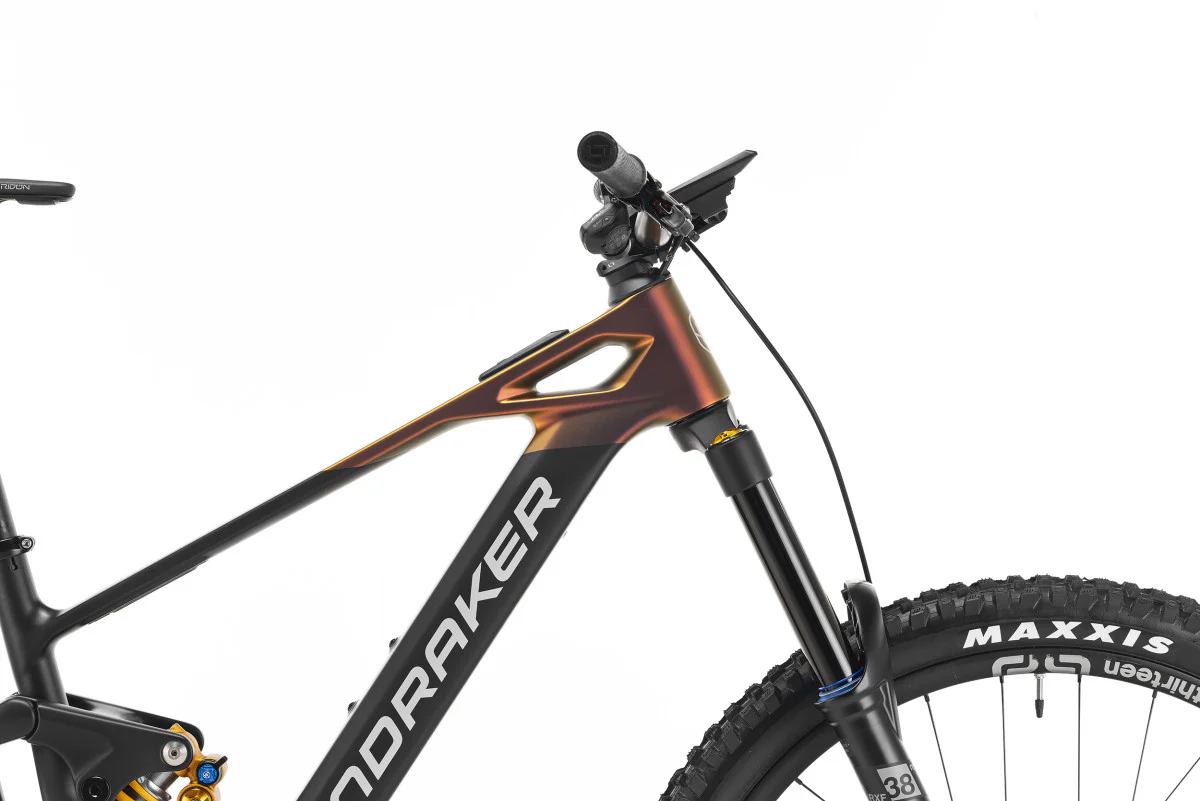

Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
