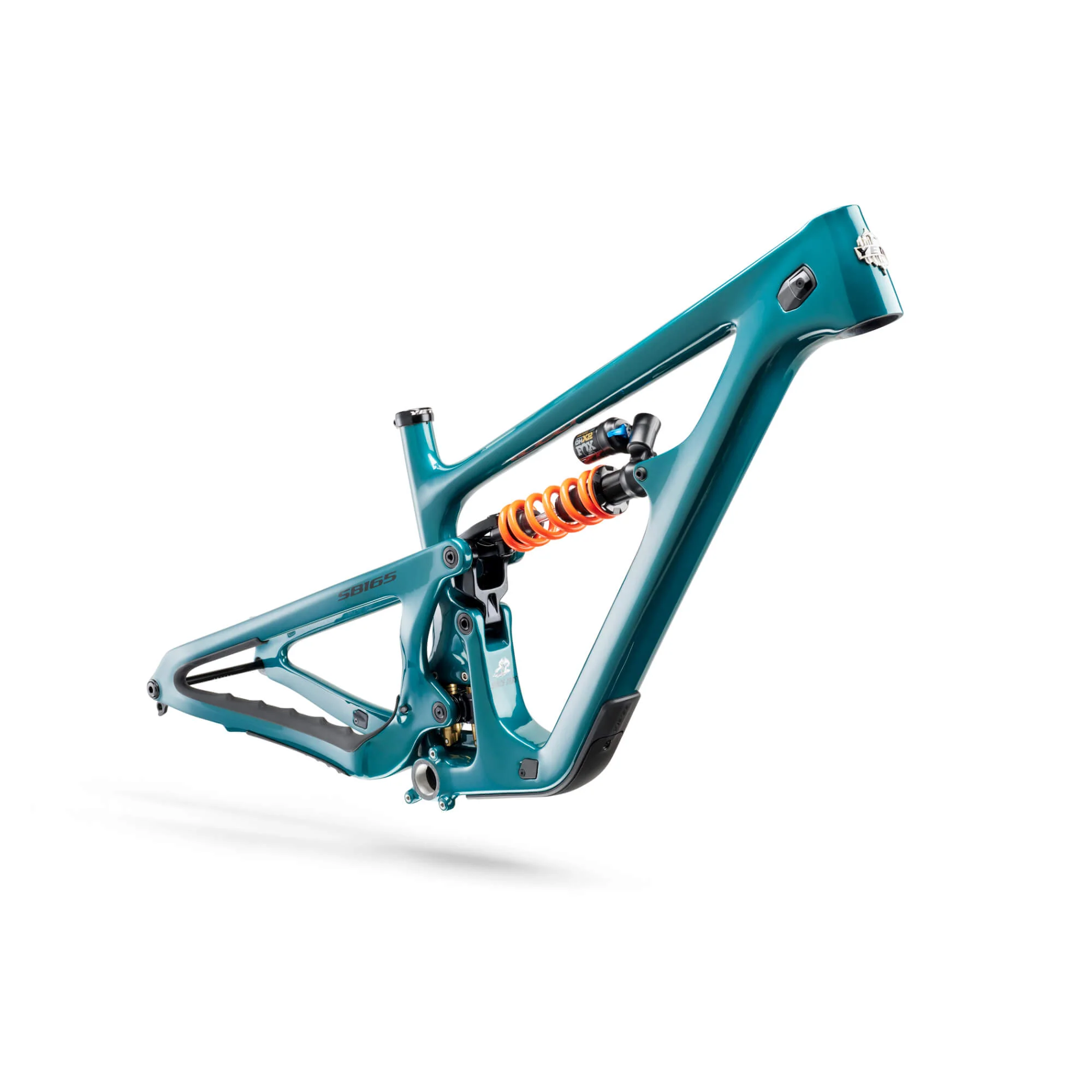

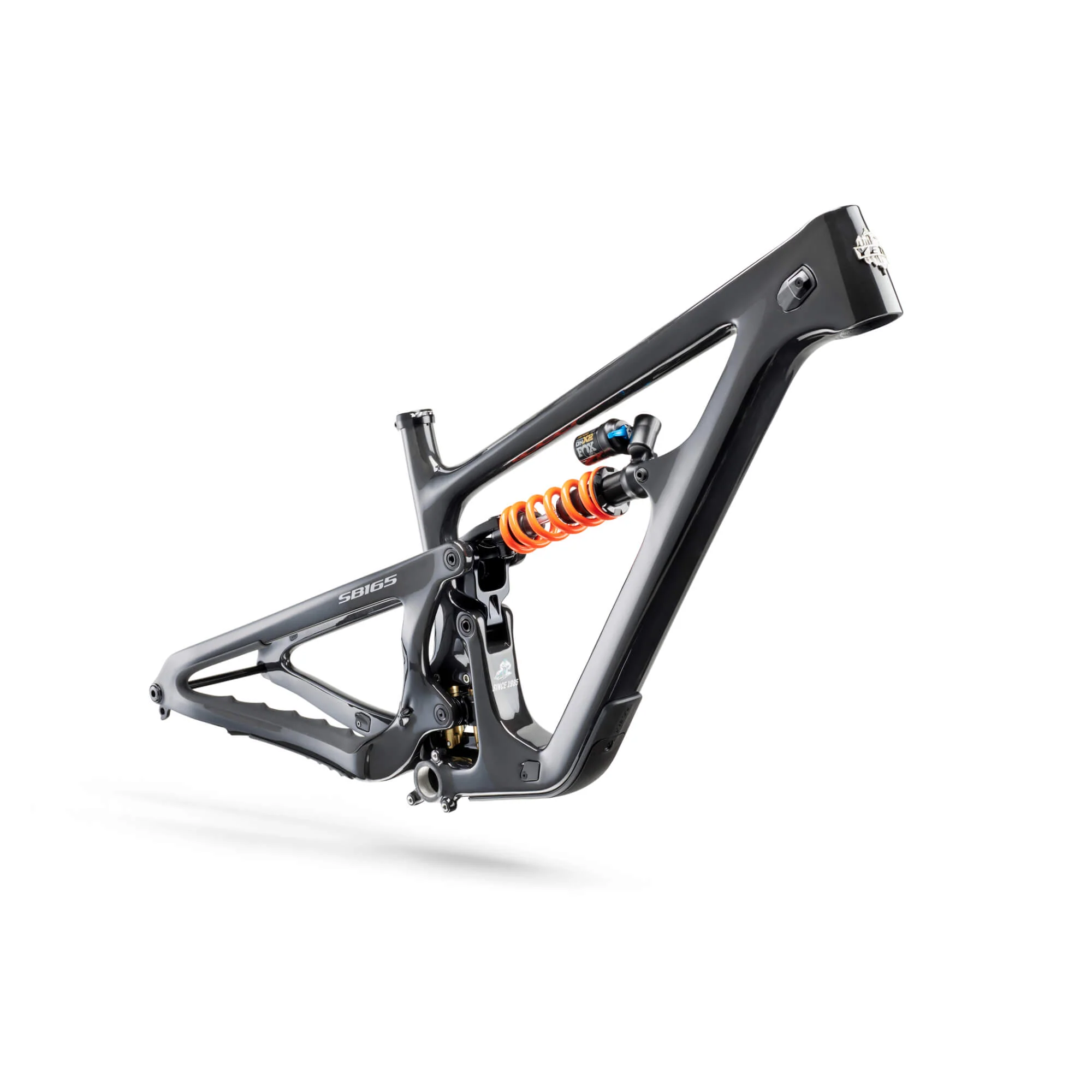

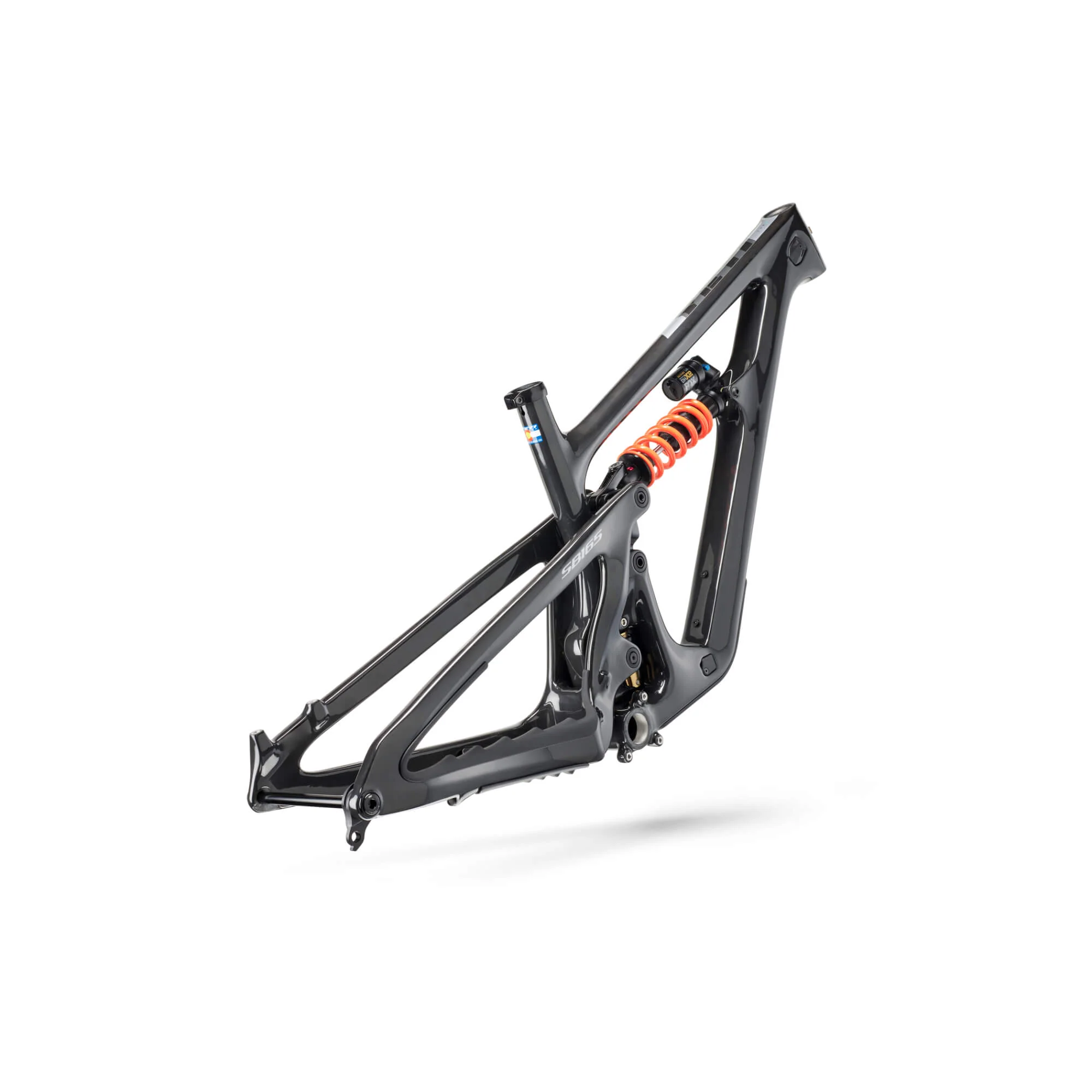

2026 Yeti SB165 29"/27.5" T-Series Frameset
WE SAID IT ALREADY KNOWS. AND NOW IT KNOWS BETTER. PROVEN WORTHY TIME AND AGAIN AT RAMPAGE, RECONFIGURED TO FIT THE BILL AS ZERO-HESITATION GO-TO FOR WHATEVER YOUR PLEASURE. UN-RACK IT FOR ALL THE PARK LAPS, PEDAL IT ON CHARACTER-BUILDING EPICS, PUSH IT UP SPOOKY STEEP DARKSIDES "NOBODY" KNOWS ABOUT. WHATEVER THE QUESTION, UNHARD YOUR DECISIONS. YOU ASK. IT GIVES..
165MM - FRAME TRAVEL
170MM - FORK TRAVEL
29" - FRONT WHEEL SIZE
27.5" - REAR WHEEL SIZE
63.5° - HEAD TUBE ANGLE
76.9° - EFF. SEAT ANGLE
HIGHLIGHTS
- FOX FACTORY 38 GRIP 2 AND FOX FACTORY DHX2 SHOCK
- FOX TRANSFER DROPPER POST
- MX DT SWISS EX1700 CUSTOM WHEELSET
- 4 PISTON BRAKES
- ODI ELITE PRO GRIPS
- 220MM FRONT AND 200MM REAR ROTORS
- MAXXIS ASSEGAI 2.5 AND DHR II 2.4 EXO+ TYRES
- SLS COIL SPRING ON FRAME ONLY
FRAME HIGHLIGHTS
- 63.5-DEGREE HEAD TUBE ANGLE
- 76.9-DEGREE SEAT TUBE ANGLE
- 165MM REAR TRAVEL PAIRED WITH A 170MM FORK
- SIZES: SM-XL
- THREADED BOTTOM BRACKET
- HIGH-CLEARANCE DOWNTUBE
- DUAL-DENSITY DOWNTUBE PROTECTION
- UNIVERSAL DERAILLEUR HANGER (UDH)
- SECURE, FULLY ENCLOSED INTERNAL CABLE MANAGEMENT
- COMPATIBLE WITH LONG DROPPER POSTS
- 100% STANDARD SEALED ENDURO MAX BEARINGS
- FLOATING COLLET AXLE PIVOT DESIGN
- COMPACT-WISHBONE SHOCK EXTENDER
- BOOST SPACING
YOU ASK. IT GIVES.
SIZE GUIDE
| SMALL | 5'1" - 5'7" | |||
| MEDIUM | 5'5" - 5'11" | |||
| LARGE | 5'10" - 6'3" | |||
| X-LARGE | 6'1" - 6'7" |
SPECIFICATION
TURQ Series carbon fibre frame, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle.
| FRAME | TURQ SERIES |
| SHOCK | FOX FACTORY DHX2 2 POS LEVER |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 170MM FORK | SM | MD | LG | XL | |
| A | SEAT TUBE LENGTH | 365 | 400 | 440 | 470 |
| B | EFF. TOP TUBE LENGTH | 573 | 604 | 625 | 653 |
| C | HEAD TUBE ANGLE | 63.5 | 63.5 | 63.5 | 63.5 |
| D | EFF. SEAT TUBE ANGLE | 76.8 | 76.9 | 76.9 | 76.9 |
| E | CHAINSTAY LENGTH | 433 | 435 | 437 | 439 |
| F | WHEELBASE | 1207 | 1242 | 1266 | 1298 |
| G | ESTIMATED BB HEIGHT | 345 | 345 | 345 | 345 |
| H | STANDOVER | 730 | 738 | 744 | 750 |
| I | HEADTUBE LENGTH | 95 | 101 | 107 | 118 |
| J | FORK (AXLE TO CROWN) | 588 | 588 | 588 | 588 |
| K | FORK (OFFSET) | 44 | 44 | 44 | 44 |
| L | STACK | 620 | 625 | 630 | 640 |
| M | REACH | 430 | 460 | 480 | 505 |
| N | FRONT CENTER | 774 | 807 | 829 | 859 |
| O | VERTICAL FORK TRAVEL | 152 | 152 | 152 | 152 |
