2026 Commencal Meta Power SX Avinox Essential Pure White EMTB

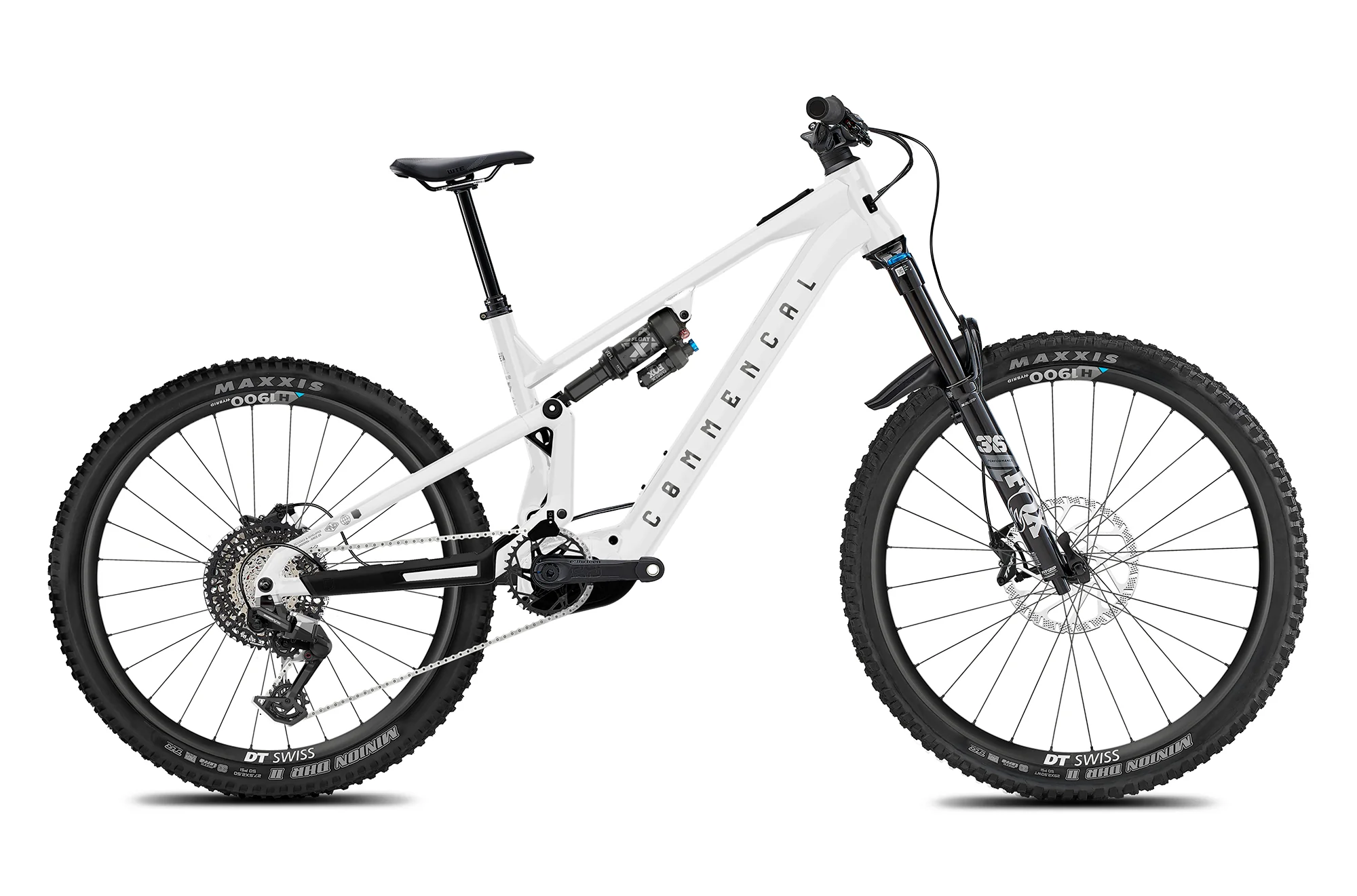

Product image 1

2026 Commencal Meta Power SX Avinox Essential Pure White EMTB

COMMENCAL META POWER SX AVINOX ESSENTIAL PURE WHITE 2026

The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.

PRE-ORDER NOW FOR APRIL 2026 DELIVERY - CALL OR EMAIL US TO RESERVE FOR A £500 DEPOSIT

The META POWER SX AVINOX ESSENTIAL offers all the reliability needed to tackle trail after trail.

• The FOX 36 Performance fork offers the Grip cartridge with a reliable e-bike chassis. It’s easy to tune and performs well in all conditions. A FOX Float X Performance shock completes the suspension. Dynamic and comfortable, its lockout lever makes climbing easier.
• TRP DH-R EVO PRO 4-piston b rakes are progressive, consistent, and easy to use.
• The DT SWISS H 1900 wheels are sturdy and hardwearing. Hand-built in Switzerland.
• We chose the 12-speed SRAM GX Eagle T-Type drivetrain as it’s highly versatile and offers a 520% gear range.

specifications

  • Frame

    META POWER SX AVINOX, 160 mm travel
    29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

  • Motor

    AVINOX
    120 Nm peak torque with a 1,000 W boost mode, and 105 Nm / 850 W in normal operation

  • Battery

    AVINOX
    600 W on S, 800 W on M / L / XL, Fully integrated main battery
    AVINOX 508w Fast Battery charger

  • Display

    AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
    AVINOX BD100, ON/OFF switch, assist mode level, battery charge level
    Switch: AVINOX BC100, mode switch, walk assist, light switch

  • Shock

    FOX Float X Performance
    230 x 60 mm, 2-postion (open/firm) lever, LSR, 0.4ci Spacers

  • Fork

    FOX 36 Performance 160 mm
    29", Grip damper, LSR, Boost (15 x 110 mm), 44 mm offset

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, stainless steel & sealed bearings

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31.8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    RIDE ALPHA Mushroom
    Soft compound, single clamp, black

  • Brakes

    TRP DH-R EVO PRO, 4 pistons
    Rotors: TRP RS06E, 6-bolt, 220 mm front / 203 mm rear

  • Shifters

    SRAM EAGLE 90
    12s

  • Chain guide

    RIDE ALPHA
    32t-34t

  • REAR DERAILLEUR

    SRAM EAGLE 90 T-TYPE
    12s

  • Crankset

    E13 HELIX CORE, 155 mm crank arms
    Chainring: SRAM CR T-TYPE, 34t, BCD 104

  • Chain

    SRAM GX EAGLE T-TYPE
    12s, Flat Top

  • Cassette

    SRAM XS 1270 T-TYPE
    12s, 10-52t

  • Rims

    DT SWISS H 1900
    Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    DT SWISS 370 Hybrid
    Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: MAXXIS MINION DHRII 27.5'' - Front: MAXXIS MINION DHRII 29'
    Rear: 27.5x2.50WT 3C MaxxTerra / EXO+ Casing / TR - Front: 29x2.50WT 3C MaxxTerra / EXO+ Casing / TR

  • Seat post

    KS Ragei
    31.6 mm, 150 mm on S, 175 mm on M and 190 mm on L/XL

  • Saddle

    WTB SOLANO
    142 x 240 mm, Medium

  • Weight

    - kg / - lbs
    Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    CRANKBROTHERS Stamp 1

  • Colour

    Pure White
    Shiny Finish

  • Accessories

    Full RIDEWRAP protective film, motor protector, chain stay protector, seat stay protector, FIDLOCK base, fork fender, CRANKBROTHERS STAMP 1 pedals

The META POWER SX AVINOX comes with a lifetime guarantee against manufacturing defects, exclusively for the original purchaser.

Technical informations


  • Bicycle type

    E-bike - Enduro / Freeride

  • Frame material

    AL 6066 T6

  • Frame weight

    4,795 kg / 10,57 lb

  • Rear travel

    160mm

  • Shock length/stroke

    230x60mm

  • Recommended SAG

    29-32% / 17,5-19mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x10mm / no bushing needed on clevis

  • Recommended/max. fork height

    576mm / 586mm

  • Headset type

    ZS56 / ZS66

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    223mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 180mm / M : 220mm / L : 240mm / XL : 260mm

  • Motor Crankarms interface

    AVINOX

  • Chain guide

    Custom upper guide

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.0mm

  • UDH hanger

    yes

Geometry

Select Size
From $3,436.47

Original: $11,454.89

-70%
2026 Commencal Meta Power SX Avinox Essential Pure White EMTB—

$11,454.89

$3,436.47
