2026 Mondraker Crafty RR S EMTB

Which colour Crafty gets your heart racing?

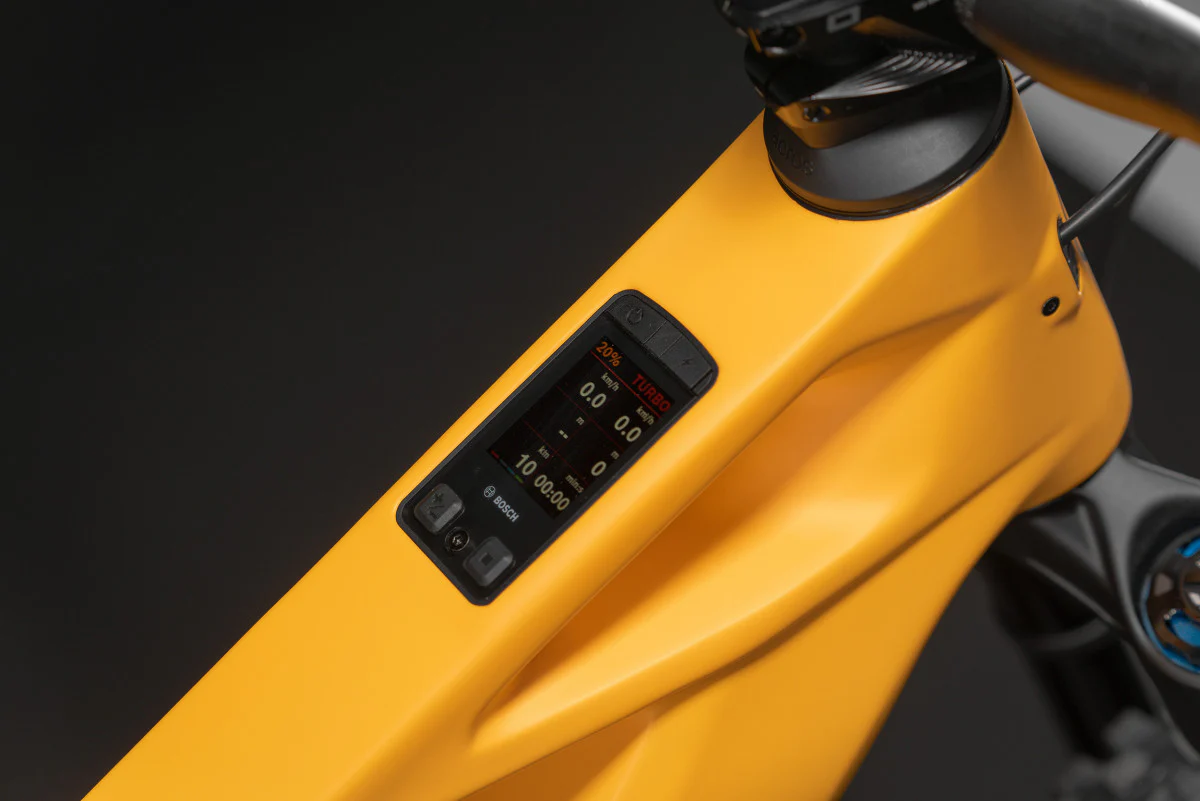

The thrill of a Crafty Carbon isn’t just about the power, travel or range you get from its high-performance motor and drivetrain, including a Bosch CX Gen5 motor (up to 100Nm of torque), a removable 600 or 800Wh battery, and a newly integrated Kiox 400 display flush-mounted into the top tube of our Stealth Carbon frame. The thrill is making it yours - choosing from our range of sizes, spec builds and especially the colour that makes your Crafty feel like a part of you, every time you ride.

Components

Technical specs

  • frame

    Frame

    Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.


    sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


    shock settings

    Shock settings

    CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

  • fork

    Fork

    Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload


    headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock

  • stem

    Stem

    Onoff S9 30mm 0º, Full CNC, 31.8mm barbore


    handlebar

    Handlebar

    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size


    seatpost

    Seatpost

    Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm

  • saddle

    Saddle

    Ergon SM-10


    front brake

    Front brake

    Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads


    brake lever

    Brake lever

    Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

  • rims

    Rims

    Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes


    spokes

    Spokes

    Mavic straight-pull double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 20x110mm, IS 6 bolts


    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead


    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect-R ebike, 160mm


    rings

    Rings

    Sram XX Eagle 34T T-Type, direct mount, steel, CL55

  • chain

    Chain

    Sram GX Eagle T-Type, 12s, Powerlock


    rear derrailleur

    Rear derrailleur

    Sram X0 Eagle AXS, T-Type, 12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s


    casette

    Casette

    Sram XS-1275, 10-52T, T-Type, 12s

  • weight

    Weight

    23,9 kg


    display

    Display

    Kiox 400C / Bosch Mini Remote

  • motor

    Motor

    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)


    battery

    Battery

    Bosch Powertube 800Wh

    Geometry

    Frame size
    		 S [Std/Low] M [Std/Low] M/L [Std/Low] L [Std/Low] XL [Std/Low]
    A Seattube length 380 mm 410 mm 435 mm 460 mm 490 mm
    B Toptube length 581 mm/582 mm 596 mm/597 mm 618 mm/619 mm 640 mm/641 mm 662 mm/663 mm
    C Bottom bracket drop -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm
    D Bottom bracket height 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm
    E Chainstay length 455 mm/456 mm 455 mm/456 mm 455 mm/456 mm 465 mm/466 mm 465 mm/466 mm
    F Seat tube angle 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65°
    G Effective seattube angle 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6°
    H Headtube angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15°
    I Fork Offset 44 mm 44 mm 44 mm/44 mm 44 mm 44 mm/44 mm
    J Wheelbase 1240 mm/1241 mm 1255 mm/1256 mm 1280 mm/1281 mm 1314 mm/1315 mm 1338 mm/1339 mm
    K Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm
    L Reach 445 mm/441 mm 460 mm/456 mm 480 mm/476 mm 500 mm/496 mm 520 mm/516 mm
    M Stack 638 mm/641 mm 638 mm/641 mm 647 mm/650 mm 656 mm/659 mm 665 mm/668 mm
