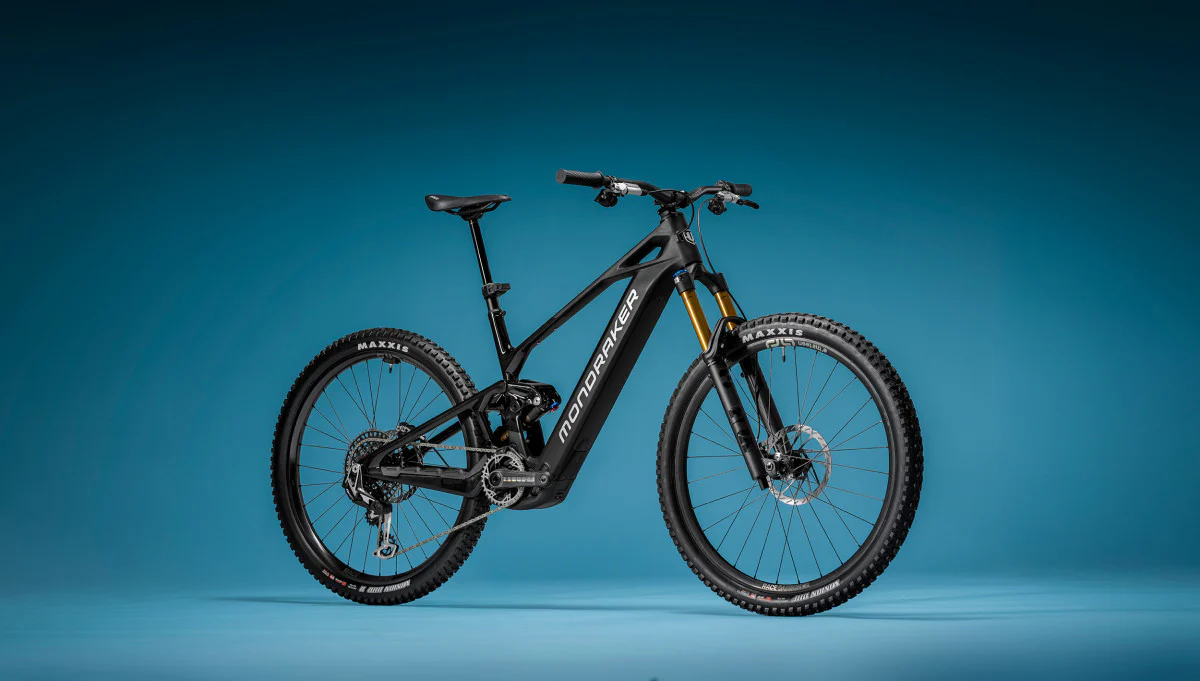

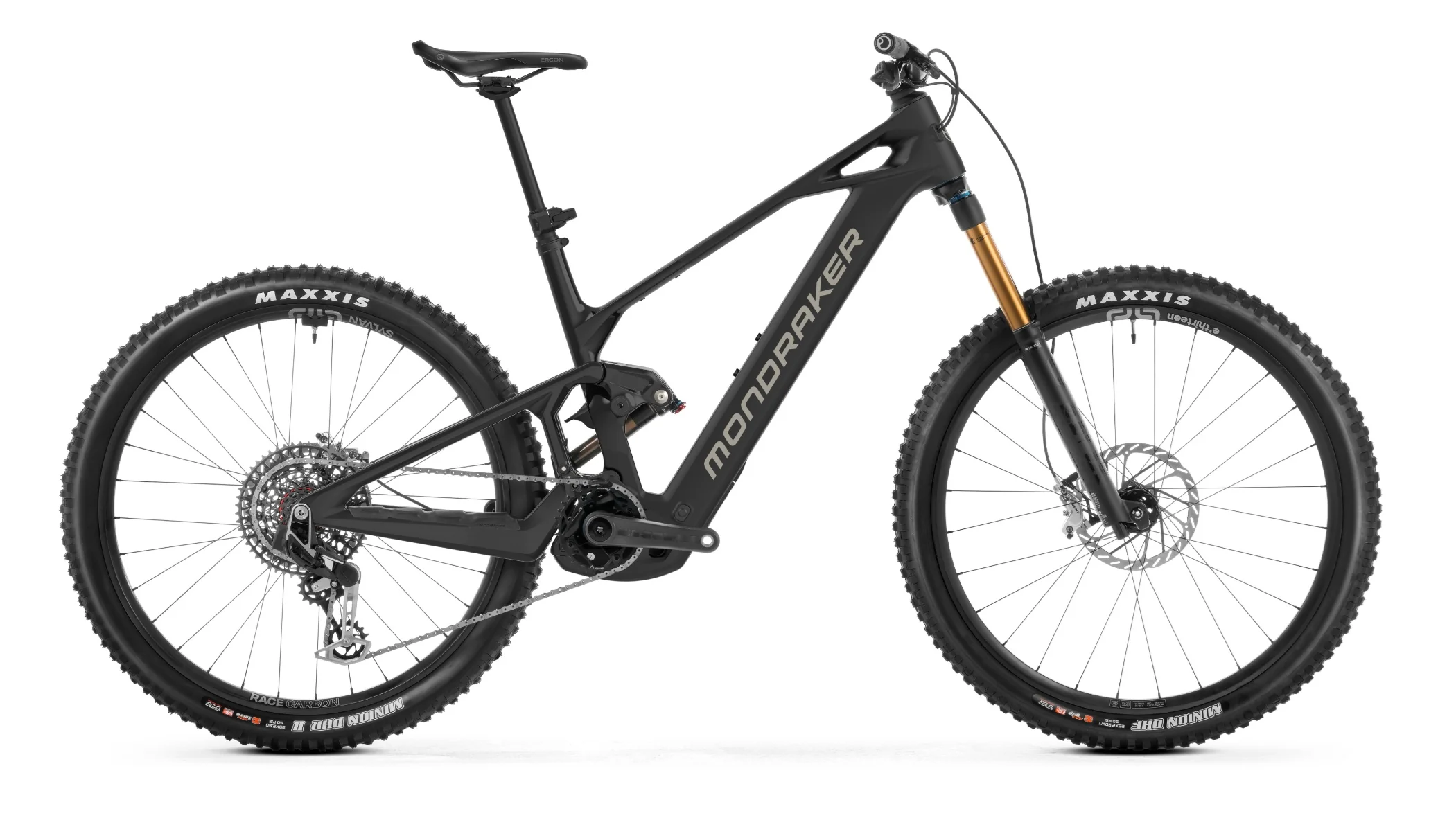

The thrill of a Crafty Carbon isn’t just about the power, travel or range you get from its high-performance motor and drivetrain, including a Bosch CX Gen5 motor (up to 100Nm of torque), a removable 600 or 800Wh battery, and a newly integrated Kiox 400 display flush-mounted into the top tube of our Stealth Carbon frame. The thrill is making it yours - choosing from our range of sizes, spec builds and especially the colour that makes your Crafty feel like a part of you, every time you ride.
Technical specs
-
Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
-

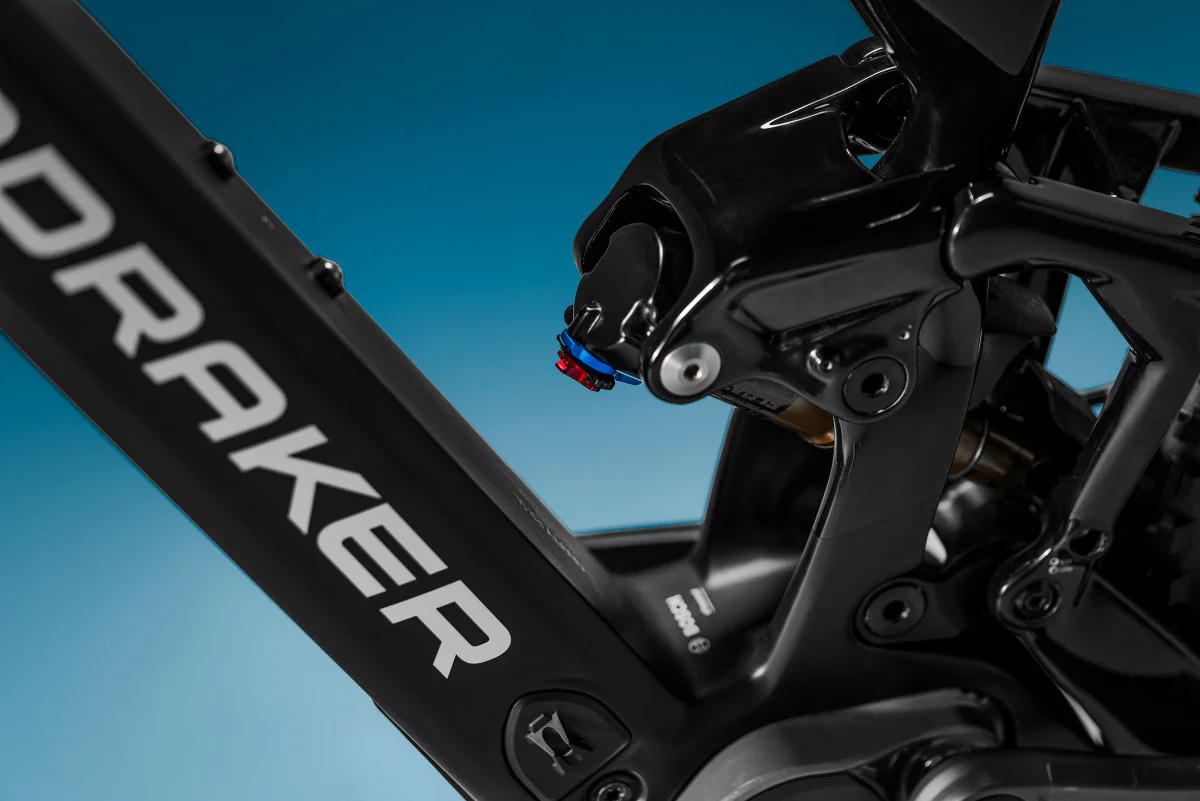

Rear shock
Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer
-
Fork
Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
-
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
-
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
-
Saddle
Fizik Vento Argo 00 Carbon 150mm
Front brake
Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
-
Rear brake
Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
-
Rims
e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
-
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
-
Front tire
Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 tubeless ready, 3C Maxx Terra, EXO+ Protection, 60TPI, folding bead
-
Crankset
E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings
Sram XX Eagle 34T T-Type, direct mount, steel, CL55
-
Chain
Sram XX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram XX Eagle AXS, T-Type, 12s
-
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1295, 10-52T, T-Type, 12s
-
Weight
20,9 kg

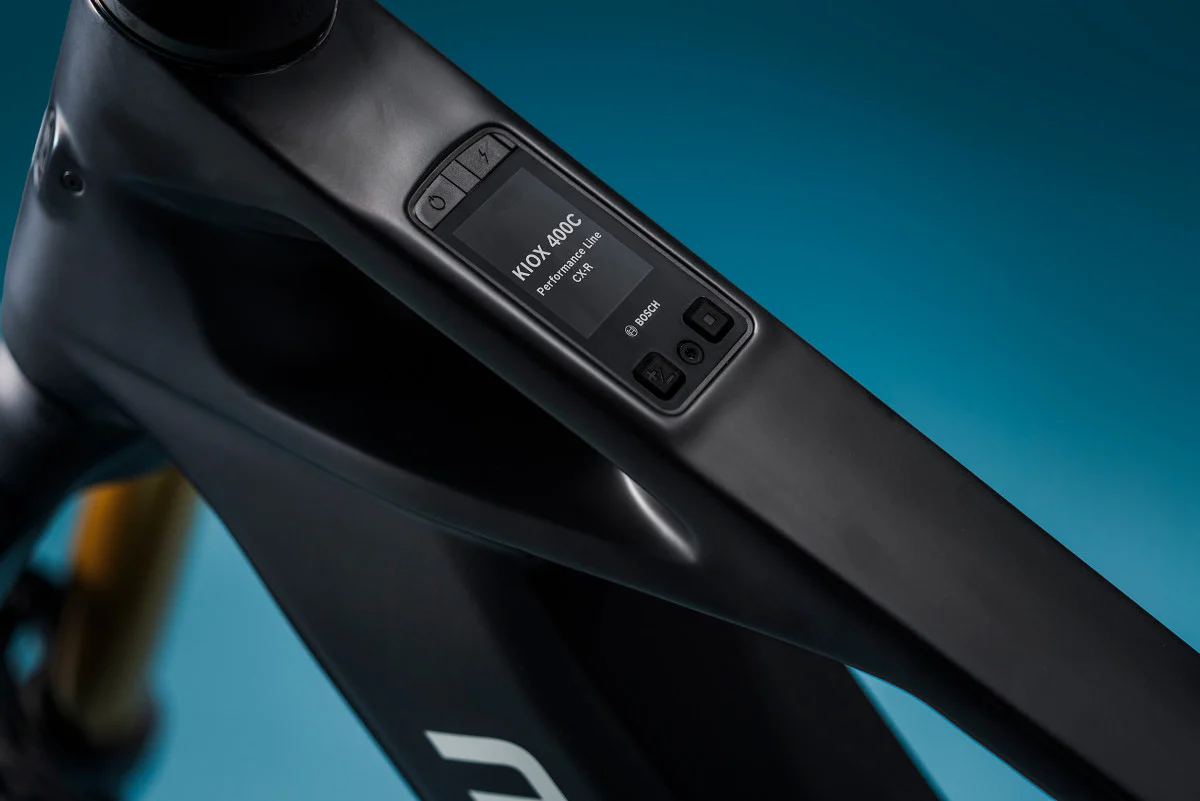

Display
Kiox 400C / Bosch Mini Remote
-

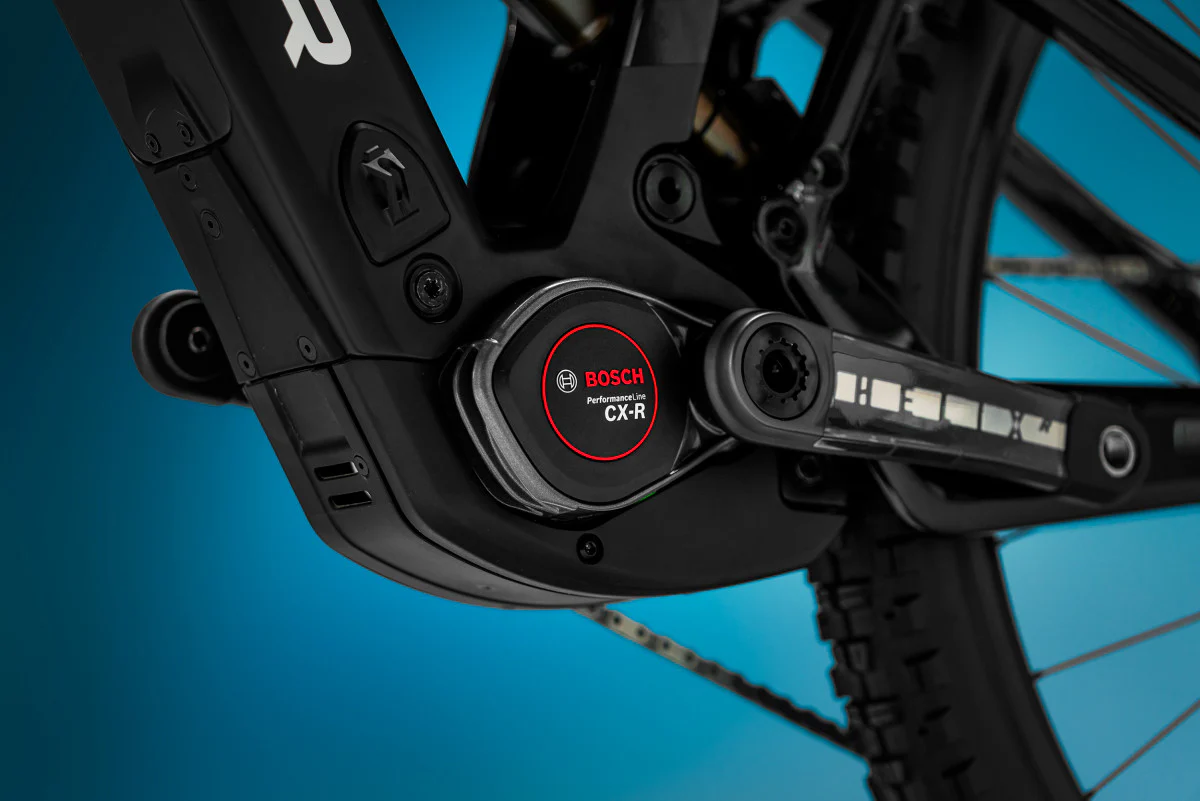

Motor
Bosch Performance Line CX RACE (25Km/h) SMART SYSTEM (BDU386Y)
Battery
Bosch Powertube 600Wh
Geometry
Frame sizeS [Std/Low] M [Std/Low] M/L [Std/Low] L [Std/Low] A Seattube length 380 mm 410 mm 435 mm 460 mm 490 mm B Toptube length 581 mm/582 mm 596 mm/597 mm 618 mm/619 mm 640 mm/641 mm 662 mm/663 mm C Bottom bracket drop -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm D Bottom bracket height 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm E Chainstay length 455 mm/456 mm 455 mm/456 mm 455 mm/456 mm 465 mm/466 mm 465 mm/466 mm F Seat tube angle 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° G Effective seattube angle 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° H Headtube angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° I Fork Offset 44 mm 44 mm 44 mm/44 mm 44 mm 44 mm/44 mm J Wheelbase 1240 mm/1241 mm 1255 mm/1256 mm 1280 mm/1281 mm 1314 mm/1315 mm 1338 mm/1339 mm K Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm L Reach 445 mm/441 mm 460 mm/456 mm 480 mm/476 mm 500 mm/496 mm 520 mm/516 mm M Stack 638 mm/641 mm 638 mm/641 mm 647 mm/650 mm 656 mm/659 mm 665 mm/668 mm
