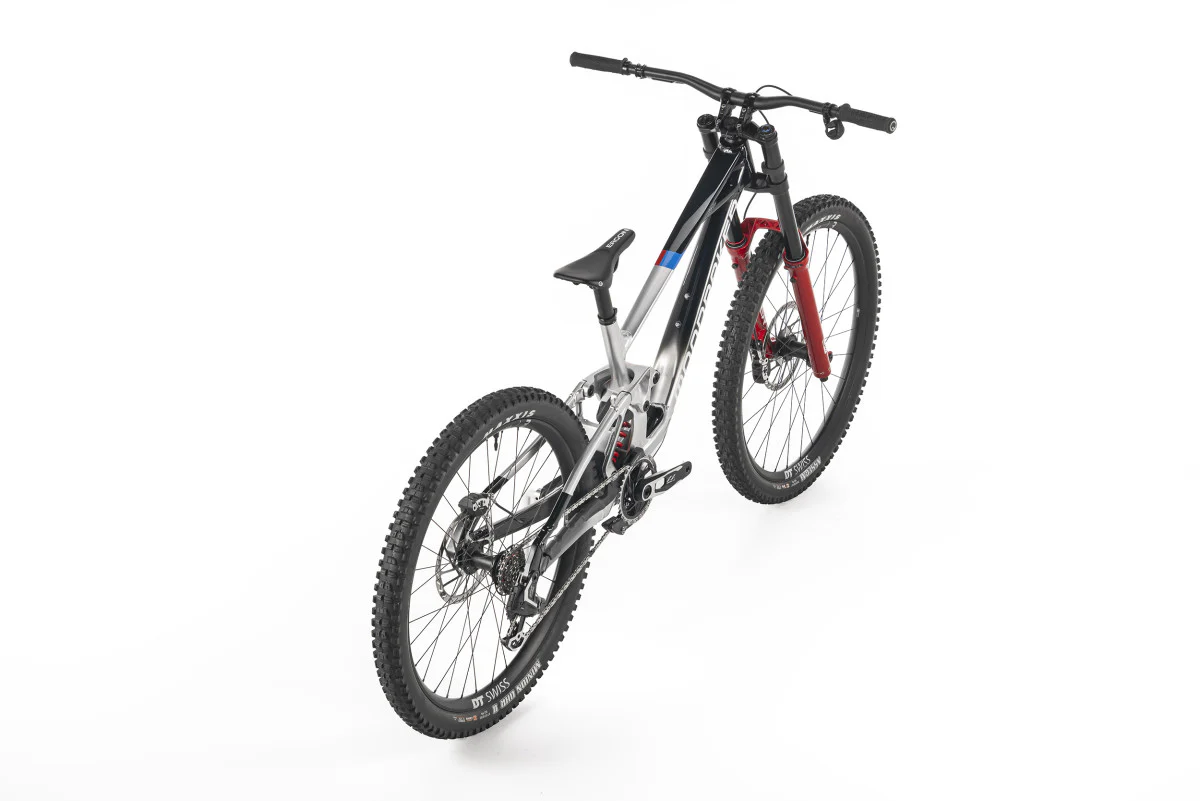

2026 Mondraker Summum RR Mullet DH Bike

2026 Mondraker Summum RR Mullet DH Bike

Name: 2026 Mondraker Summum RR Mullet DH Bike
Brand: Pedalz
SKU: 2026-mondraker-summum-rr-mullet-dh-bike
Availability: InStock

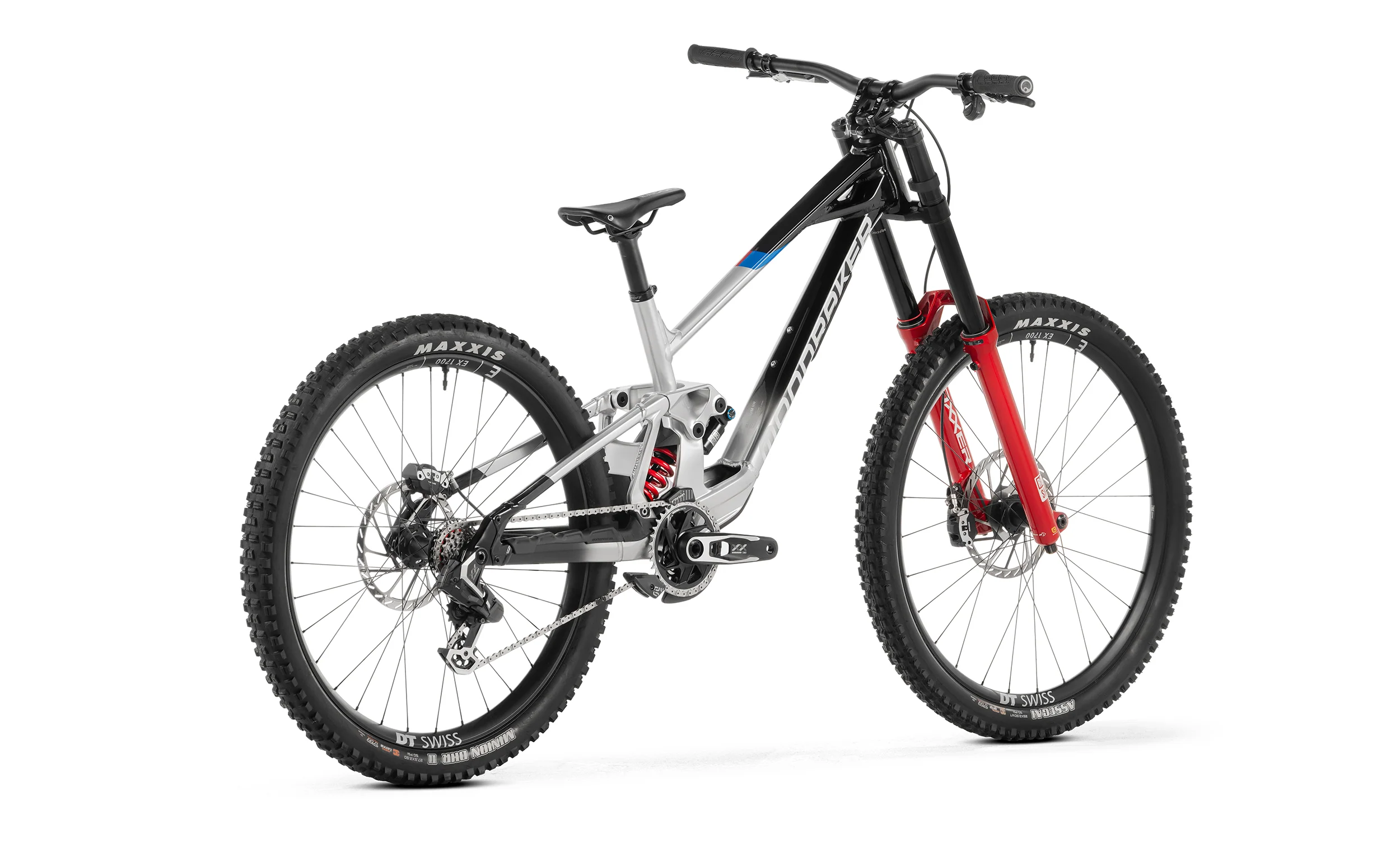

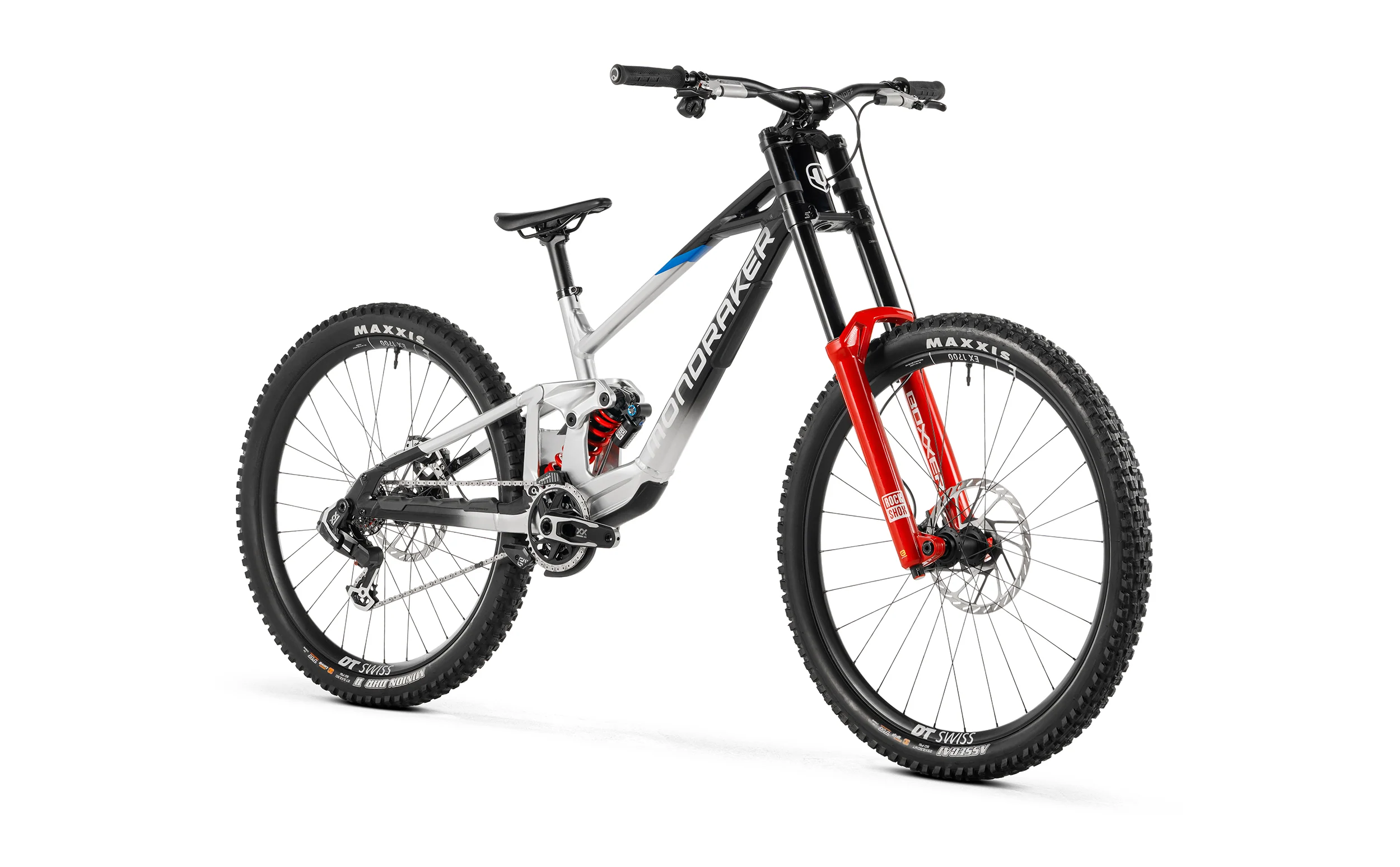

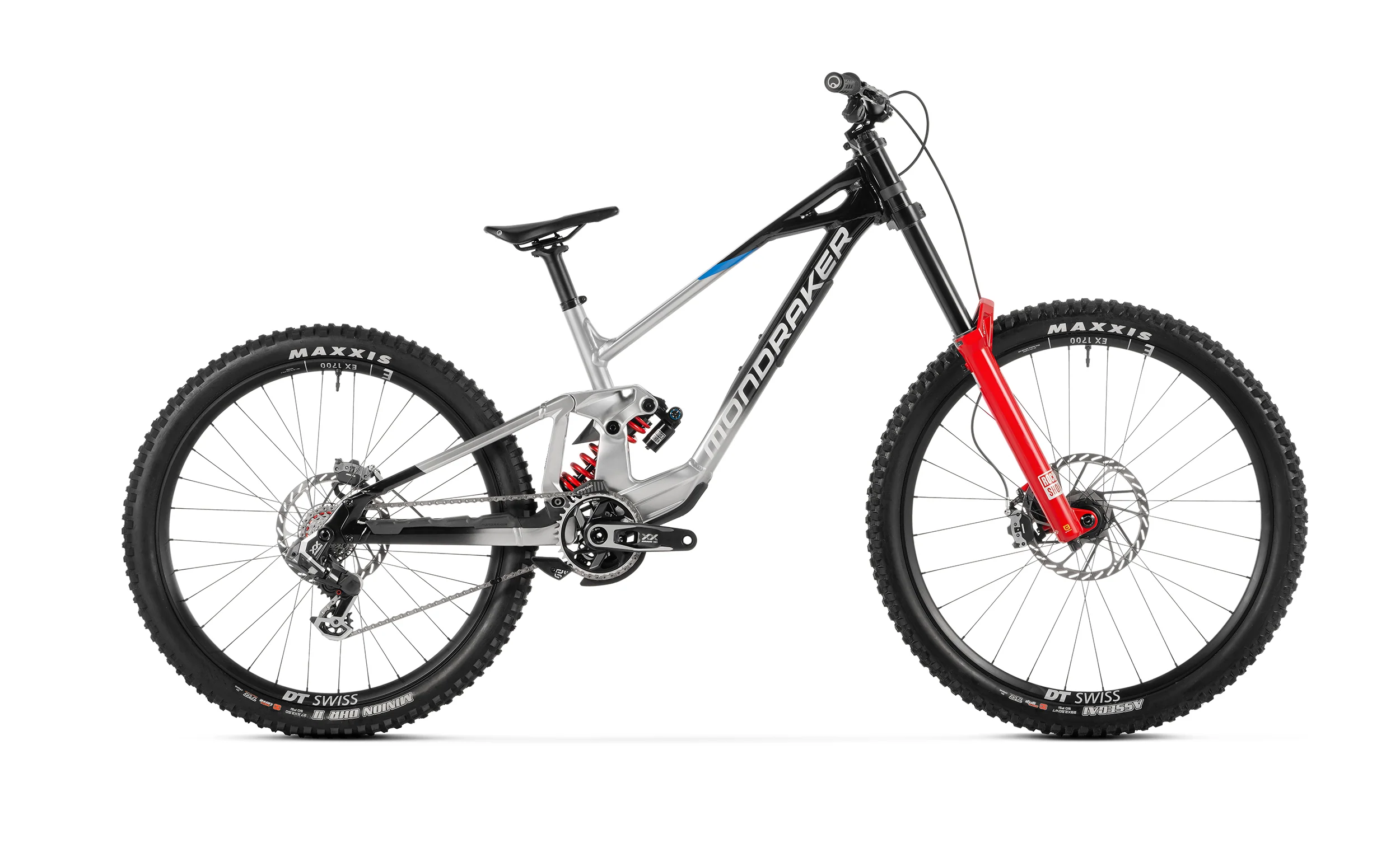

INTRODUCING THE NEW MONDRAKER SUMMUM

YOUR BEST NEW TOOL IN THE BOX FOR DOWNHILL RACING

The Summum embodies our passion for technology, competition and Downhill racing. It is no coincidence that Mondraker's first ever product was a Downhill bike… and the Summum has become the most successful race bike at Mondraker and a true benchmark.

Developed under the cutting-edge and most advanced expertise this new Summum has been forged on the toughest World Cup race tracks across the globe with sweat, adrenaline and victories of our Mondraker Factory DH racing team racers.

WINNING PROVEN KINEMATICS

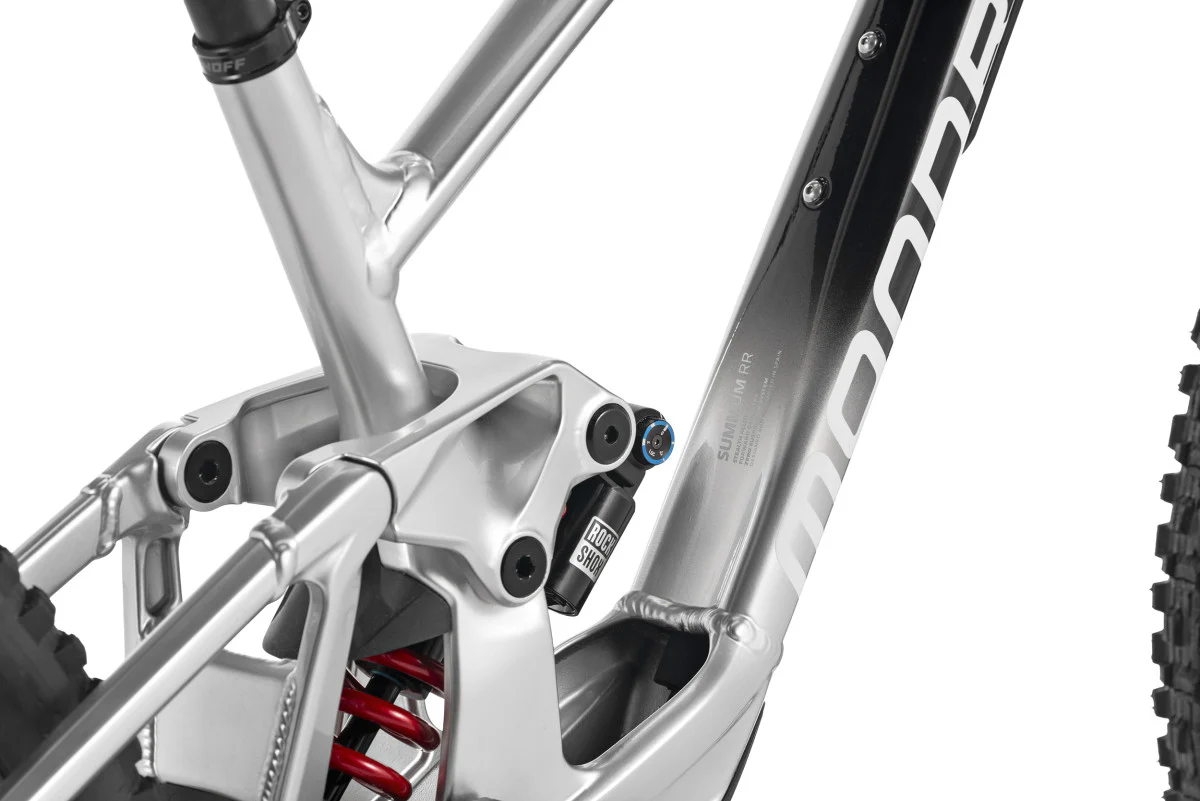

This new model features an all-new updated Zero Suspension System kinematics delivering better performance with more mid stroke support -where you need it the most- that translates into a faster bike, improved handling and enhanced suspension suppleness off the top.

DH-SPECIFIC FORWARD GEOMETRY

Longer reachs, slacker head tube angles… directly inherited from World Cup racing. Key refinements that you will benefit from when you put the bike to the test.

PROVEN BY THE MFR TEAM

This new Summum is the result of all the racing development from our MFR DH team over the past few years.

27 ADJUSTMENTS FOR THE PERFECT SET-UP

For those most skilled riders who prefer to further customize the geometry or adapt this new bike to certain courses or personal preferences you will find up to 27 possible configurations thanks to adjustable headset cups, a lower shock-mount flip chip, and adjustable rear dropouts.

Technical specs
- Frame

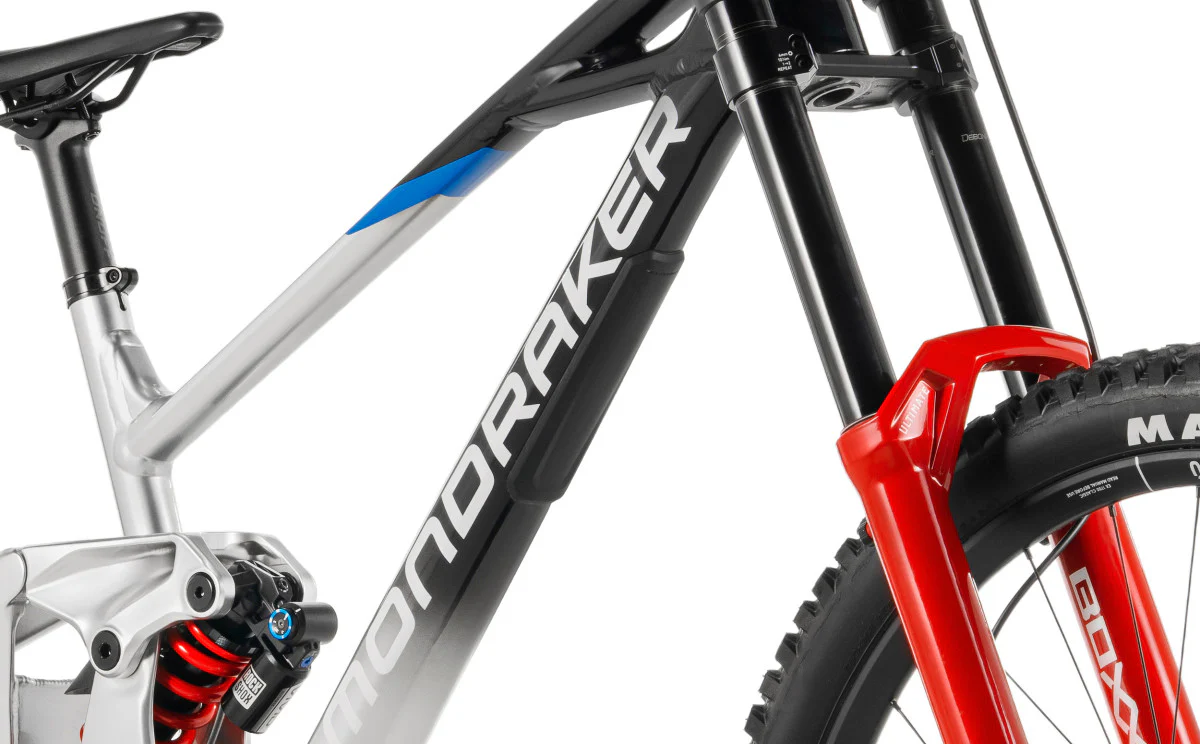

  Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.

  Sizes

  M / L / XL
- Rear shock

  Rock Shox Vivid Coil Ultimate, 225x75mm, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings

  Shock settings

  Medium compression, linear rebound. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
- Fork

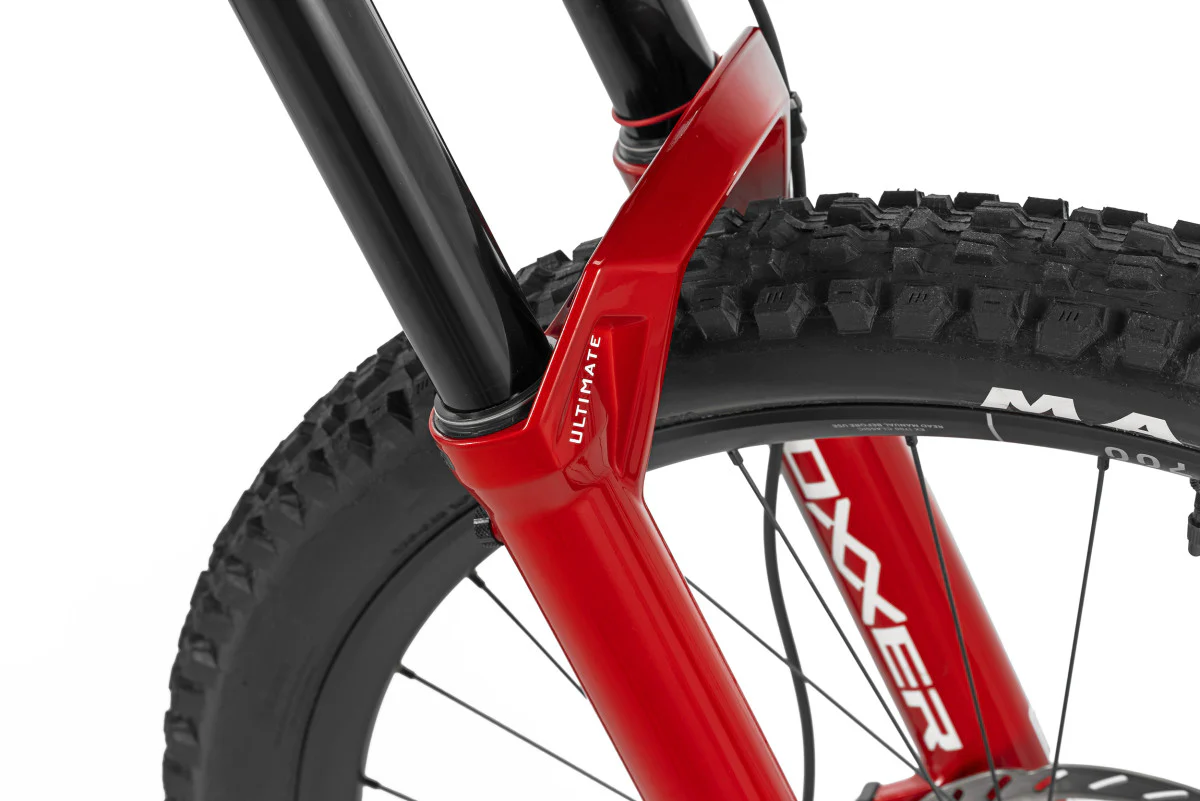

  Rockshox Boxxer Ultimate 29,Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload

  Headset

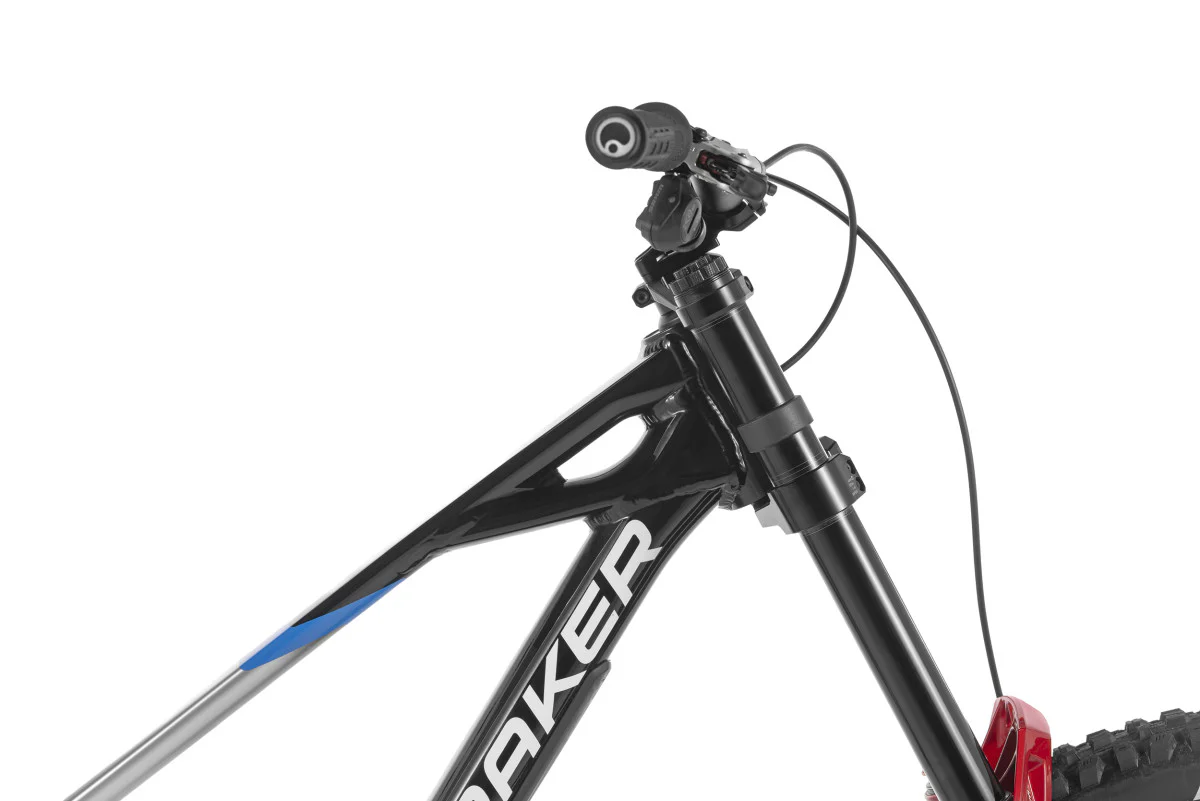

  Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm)
- Stem

  Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

  Handlebar

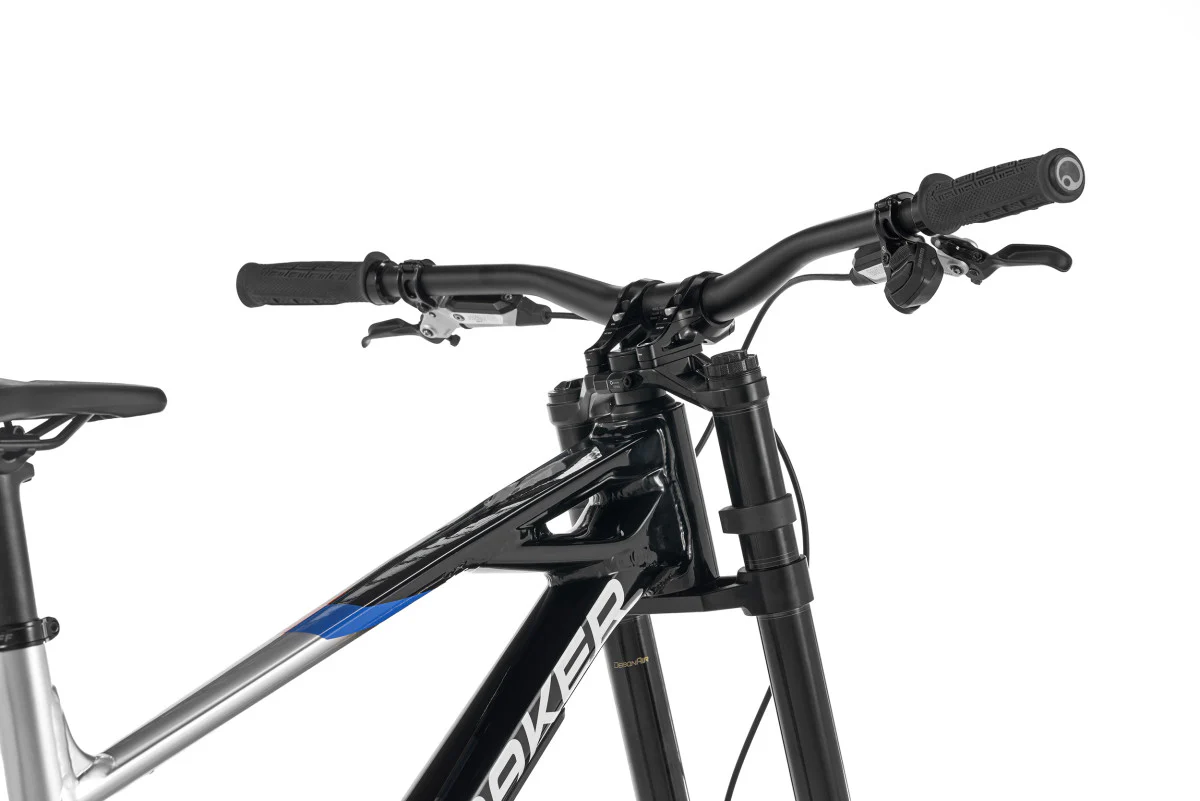

  Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
- Grips

  Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

  Seatpost

  Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
- Saddle

  Ergon SM10 DH Black

  Front brake

  Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear brake

  Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  Brake lever

  Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
- Rims

  DT Swiss EX1700 Classic 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear

  Spokes

  DT Competition, straightpull
- Front hub

  DT 350, Boost 20x110mm, IS 6 bolts

  Rear hub

  DT 350 Classic with 72T Ratchet DEG System, Boost 12x157mm, IS 6 bolts, XD freehub
- Front tire

  Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead

  Rear tire

  Maxxis Minion DHR II 27'5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead
- Crankset

  Sram XX DH T-Type, DUB axle, Direct mount chain ring, 160mm CL 56´5

  Rings

  36T, Aluminium T-Type
- Bottom bracket

  Sram DUB BSA, sealed bearings, 83mm

  Chain

  Sram X0 Eagle T-Type, Powerlock
- Derailleur hanger

  E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

  Front derrailleur

  Sram XX DH AXS, T-type, 7s
- Rear derrailleur

  Sram Eagle AXS Pod

  Shift levers

  Sram XS 797 10-24T, 7s
- Derailleur hanger

  *Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout

  Weight

  18,9 kg

Geometry

Frame size		M	L
A	Seattube length	400 mm	400 mm	400 mm
B	Toptube length	709,63 mm	739,63 mm	769,63 mm
C	Bottom bracket drop	5 mm	5 mm	5 mm
D	Bottom bracket height	350,5 mm	350,5 mm	350,5 mm
E	Chainstay length	455 mm	455 mm	455 mm
F	Seat tube angle	68º	68º	68º
G	Effective seattube angle	68º	68º	68º
H	Headtube angle	62,5º	62,5º	62,5º
I	Fork Offset	52 mm	52 mm	52 mm
J	Wheelbase	1285,38 mm	1315,38 mm	1345,38 mm
K	Headtube length	120 mm	120 mm	120 mm
L	Reach	450 mm	480 mm	510 mm
M	Stack	642,6 mm	642,6 mm	642,6 mm
O	Fork Height	601,9 mm	601,9 mm	601,9 mm

The Summum has become the most successful race bike at Mondraker and a true benchmark.
